21-8 Art: 714383-00F Rev. Date: 02-Sep-08
Connecting the Serial
Port Downloader
Option 1: The following option is for downloading/uploading only and
can be used when there is no power outlet available for the
Downloader or Downloader/Recharger.
In this particular configuration, both recharging LED lights will be
lit. The primary recharging LED will blink red and the alternate
will be steady green. This is typical behavior, and does not indicate
that any charging is taking place. In fact, batteries cannot be
charged in the Downloader/Recharger in this configuration.

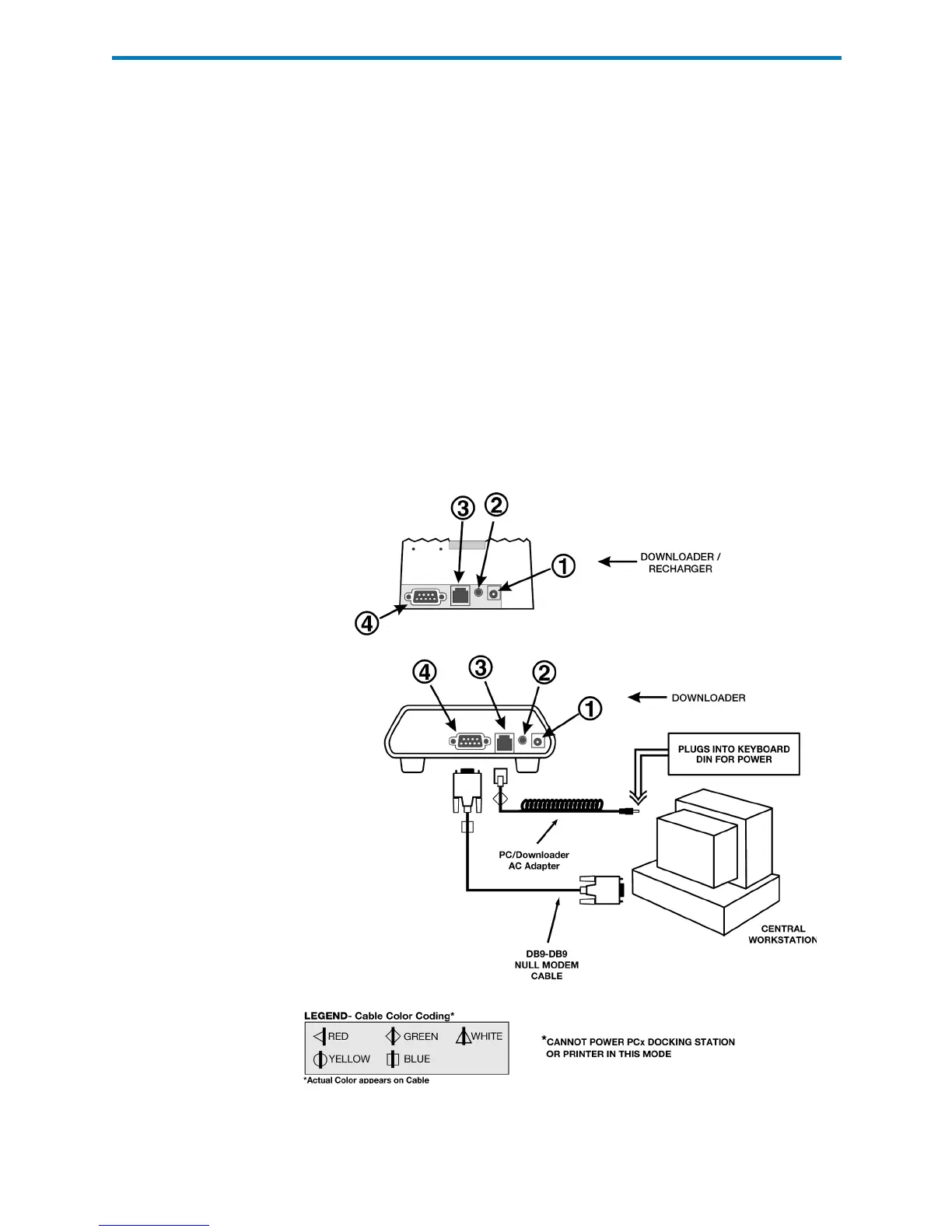

The following diagram shows how to connect a serial downloader
locally to the Data Manager. Parts required are:
• PC/Downloader Adapter
• DB9-DB9 Null Modem Cable
Power In
Power Out
RJ12 (printer interface)
DB9
To Next Page
