Art: 714383-00F Rev. Date: 02-Sep-08 21-9

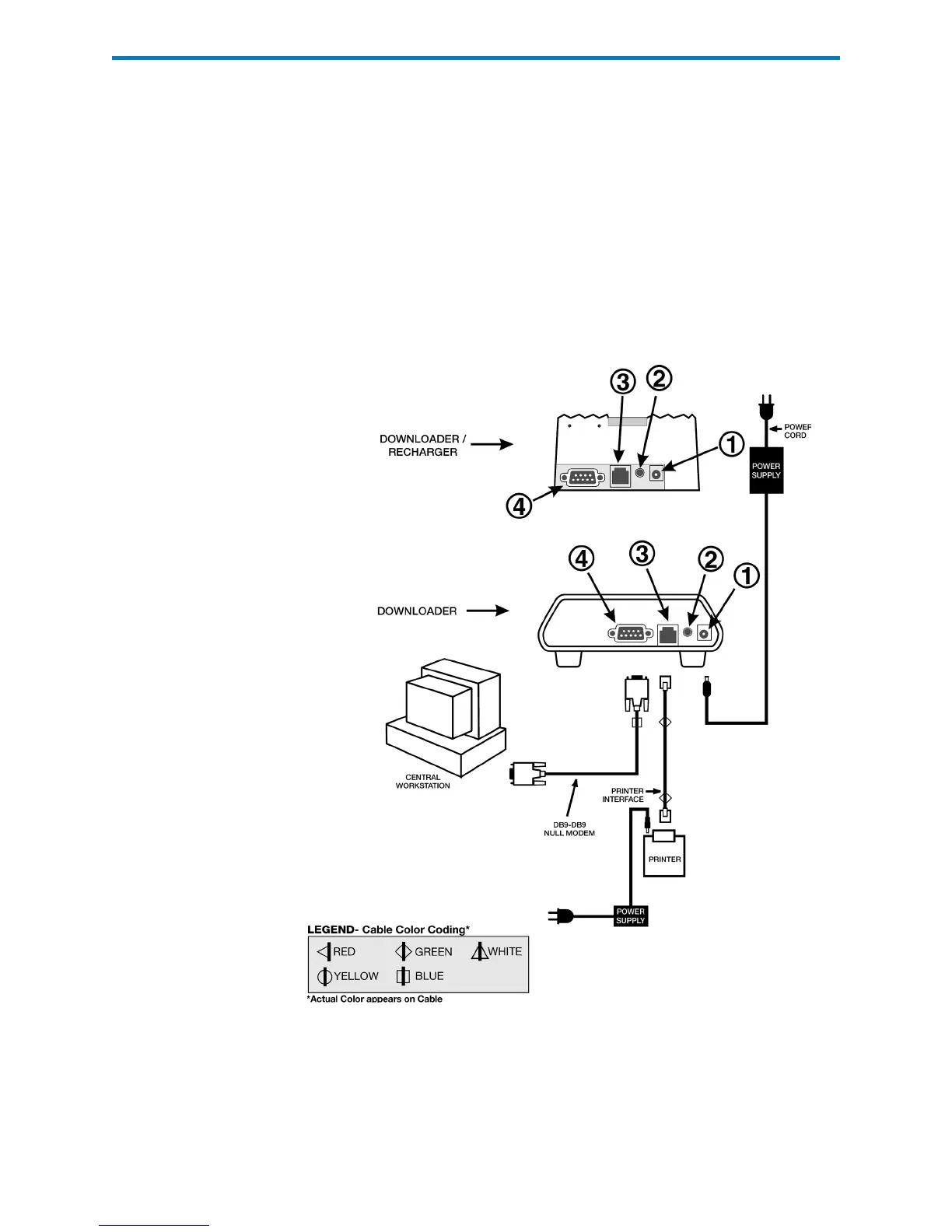

Option 2: The following diagram shows how to connect a serial downloader

to the Data Manager, and to connect the portable printer to the

Downloader for communication. Parts required are:

• DB9-DB9 Null Modem Cable

• Printer Interface Cable

• Printer AC Adapter

 Power In

 Power Out

 RJ12 (printer interface)

DB9
