12-6 Art: 714374-00J Rev. Date: 25-Aug-11

for i-STAT Cartridge

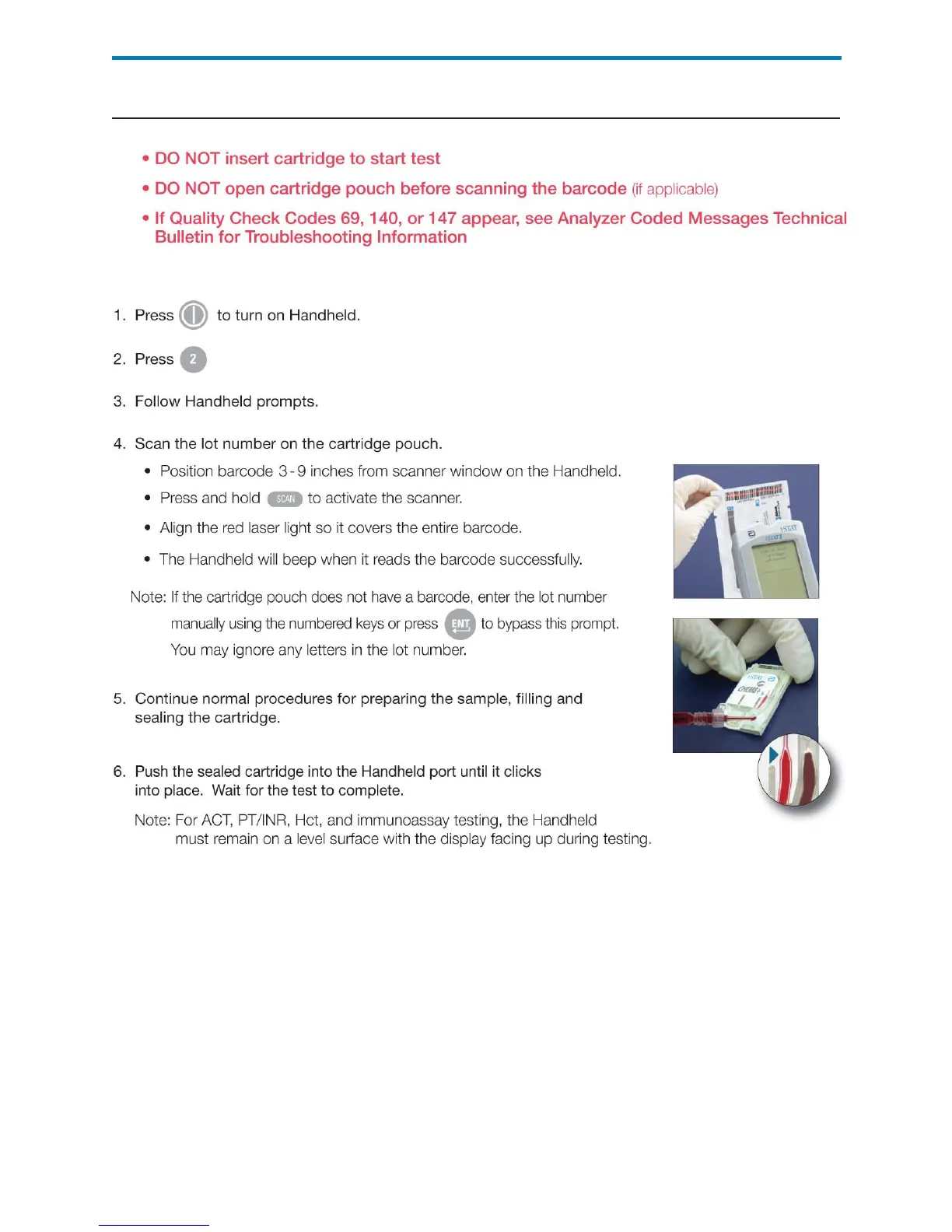

A level surface includes running the handheld in the

downloader/recharger.

7. Review results.

PERFORMING PATIENT ANALYSIS
