Abbott i-STAT 1

To Next Page

To Previous Page

Abbott Point of Care Inc. • Abbott Park, IL 60064 • USA

Art: 725703-00A Rev. Date: 08-Mar-10

Technical BulleTin

i-STAT

UPDATES TO THE i-STAT 1 DOWNLOADER/RE-

CHARGERS

OVERVIEW

Abbott Point of Care continuously seeks to improve the reliability of our product lines. As such, we have

made three (3) changes to our Downloader/Recharger products as described below.

Note: these changes do not impact the configuration or transmission instructions for the devices.

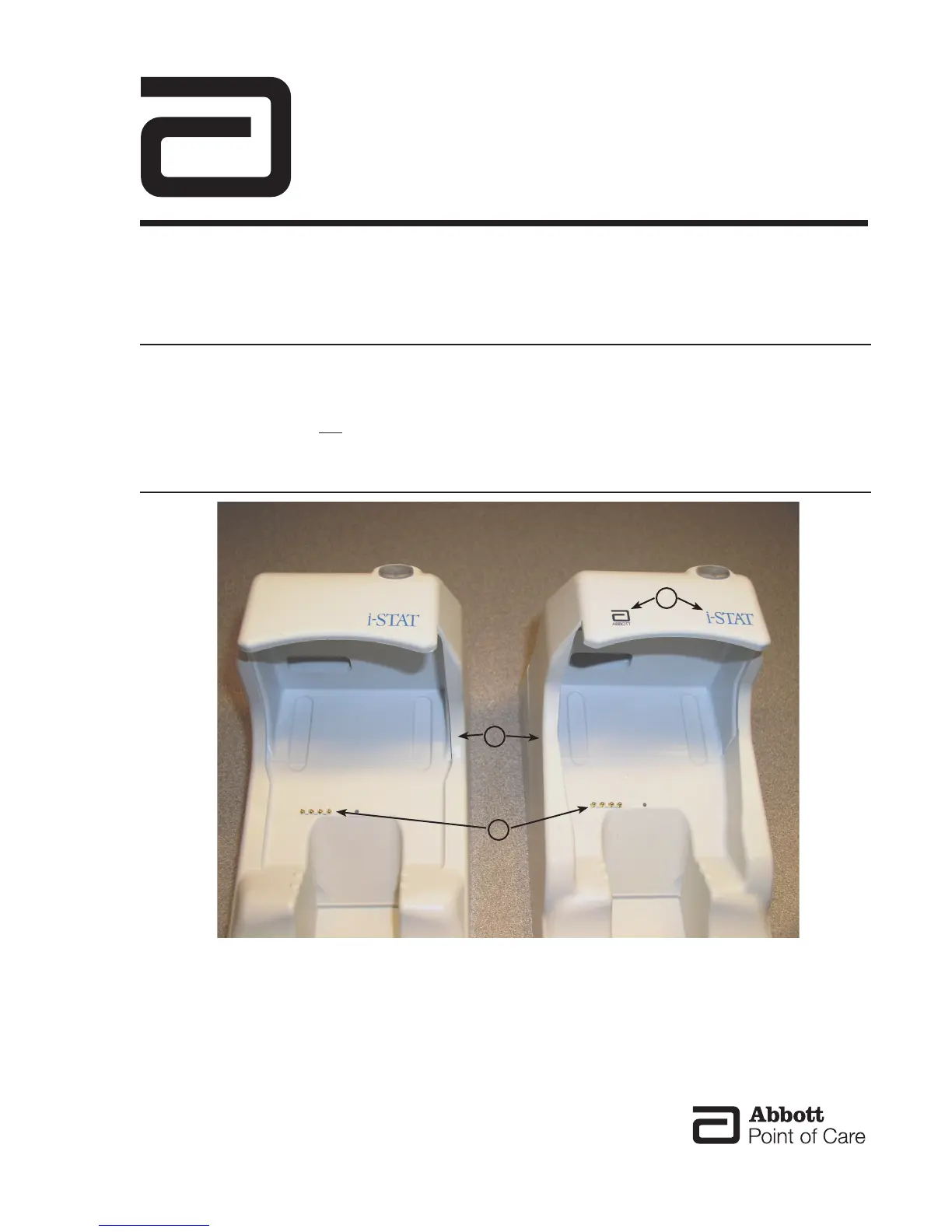

CHANGE DESCRIPTION

Current Downloader/Recharger New Downloader/Recharger

The side walls have been raised to prevent the insertion of a handheld at an angle or from the •

side. (A)

The color of the recharge pins has been changed to silver, and their diameter has increased in •

size. (B)

The front cover now has both the Abbott and i-STAT logos. (C)•
