21-10 Art: 714383-00F Rev. Date: 02-Sep-08

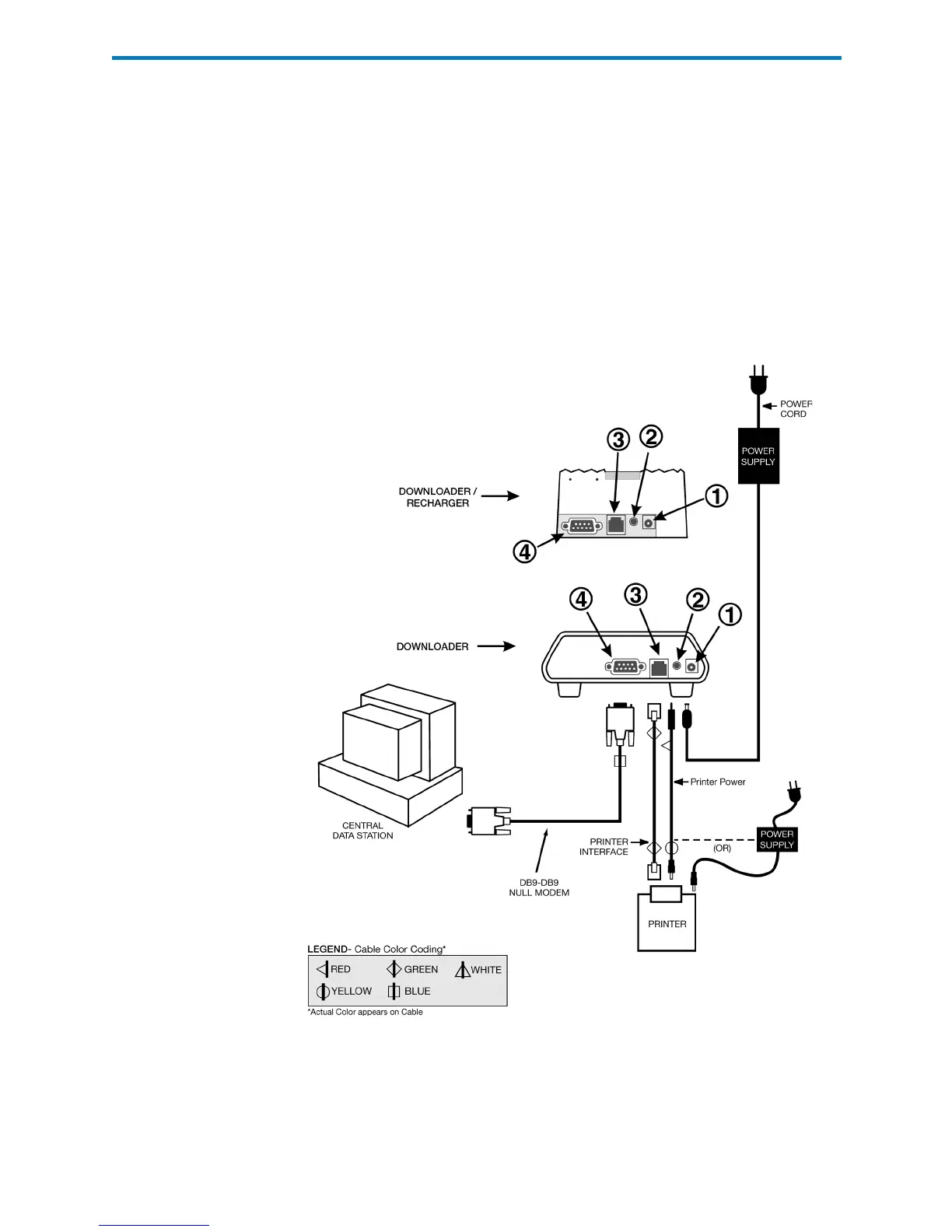

Option 3: The following diagram shows how to connect a serial downloader
to the Data Manager, and to connect the portable printer to the
Downloader for power and communication. The printer can also
be powered by its own AC adpater. Parts required are:
• DB9-DB9 Null Modem Cable
• Printer Interface Cable
• Printer Power Cable or Printer AC Adapter
Power In
Power Out
RJ12 (printer interface)
DB9
