Operator Log

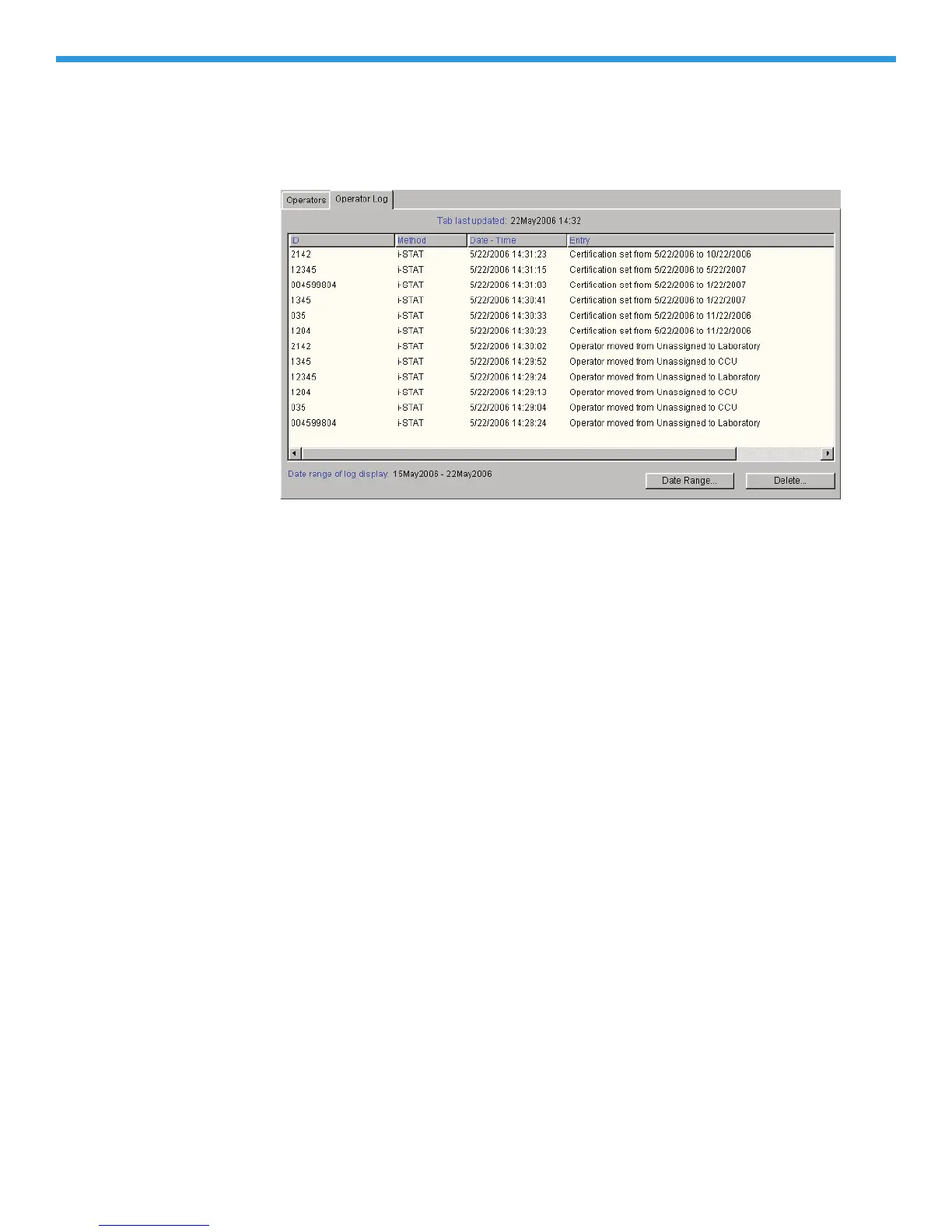

The Operator Log tracks changes made and “Add Note” entries made in the

Operator tab page. The Date Range… button can be used to specify a time

period to be viewed and the Delete… button to delete entries. To print the log

press the F2 key or select Print from the Main menu.
