i-STAT is a registered trademark of the Abbott Group of Companies in various jurisdictions.
2 Art: 716625-00D Rev. Date: 07-Apr-09
6. Slide the connector onto the two metal connector pins behind the alignment tab on the printer. Refer to
Figures 5 and 6 in Appendix.
7. Once the wires are connected, place the battery portion of the pack into the rectangular compartment.
Make sure the wires are not under the battery or projecting out of the opening.
8. Slide the battery door back onto the compartment until it closes and locks into place.
9. Turn the printer over, plug it back into the AC power adapter, and charge the new battery in the printer for
a minimum of 9 hours before use (fast charging occurs only when the printer is turned off).
Symptoms Indicating that the NiMH Rechargeable Battery Requires Replacement
1. A steady yellow Status Light on the printer, even after charging it for the recommended 9 hours.
2. Loss of battery capacity, indicated by a shorter interval between charges.
3. The printer Power LED does not come on when the printer is turned on. The power adapter cannot supply
sufficient power for printing so the battery needs to be partially charged before printing is possible.
Procedure for Ordering a Replacement NiMH Rechargeable Battery
To order a replacement NiMH rechargeable battery, call Abbott Customer Service at 1-800-323-9100. The
Abbott list number for the NiMH rechargeable battery is 06F21-35.

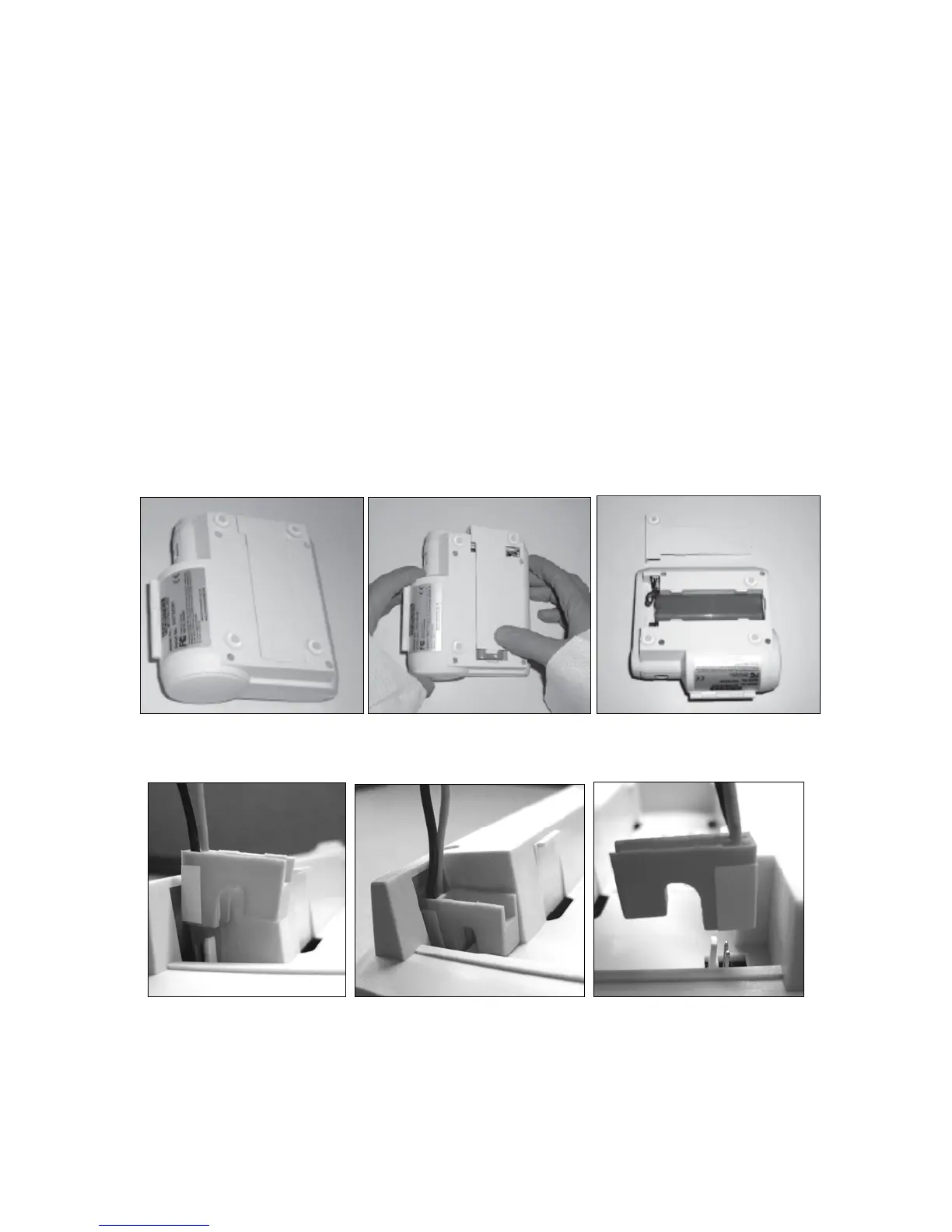

Appendix
Figure 1 Figure 2 Figure 3
Figure 5 Figure 6 Figure 7
