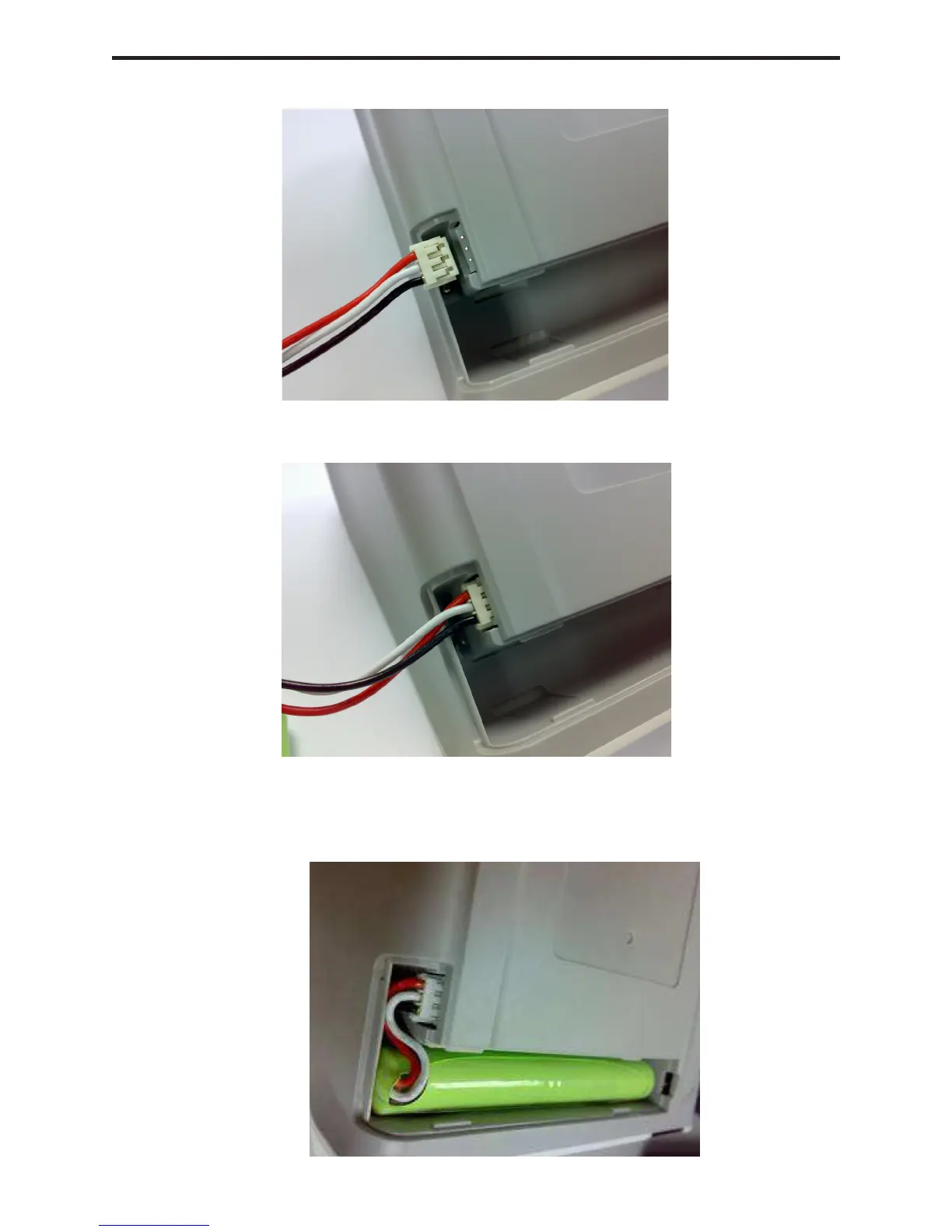

5. Assure proper connector alignment as shown.

6. Slide the connector onto the three metal connector pins.

7. Once the wires are connected, place the battery portion of the pack into the rectangular compart-

ment. Make sure the wires are not under the battery or projecting out of the opening. The correct

positioning is shown below.
