Chapter 2 - System Board
2-5
2.3
Jumpers and Connectors
2.3.1
Jumper
and Connector Locations
Figure 2-2
shows the jumper and
connector locations.

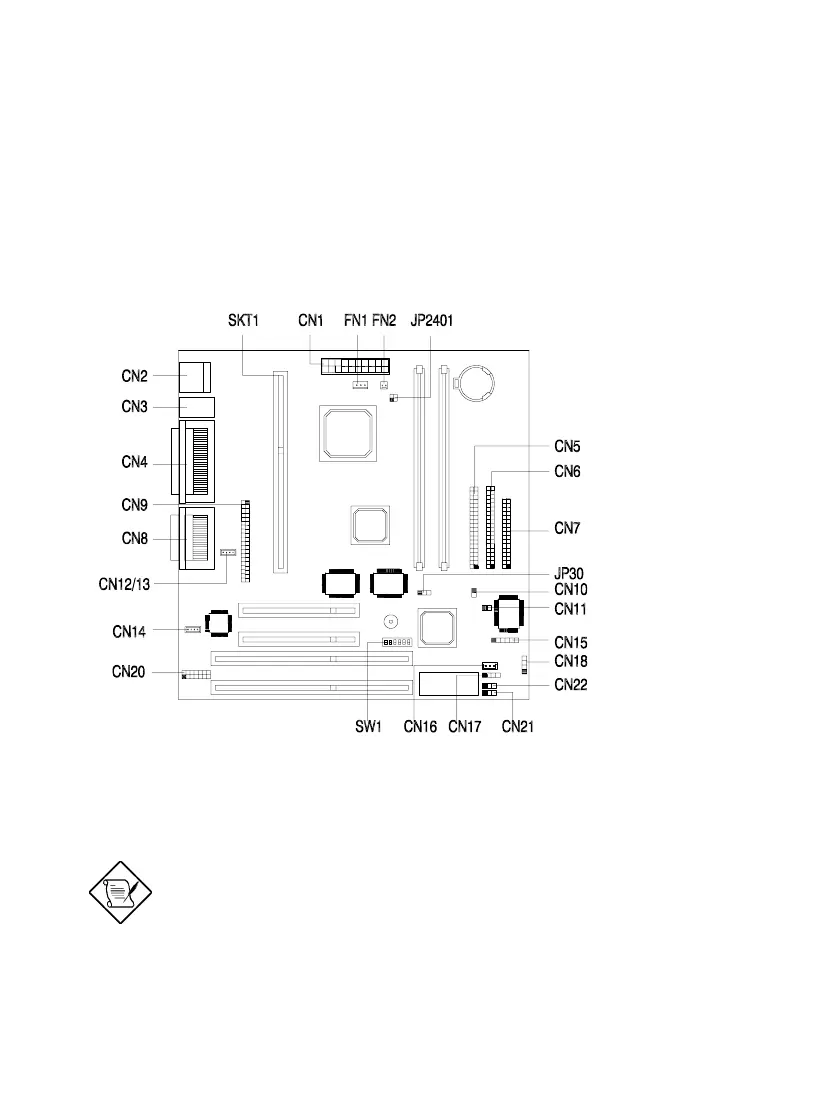

Figure 2-2
Jumper and Connec
tor Locations
The shaded pin indicates
pin 1.
