AcerPower 6000 User’s Guide4-18
2. Press the four rivets to secure the retention mechanism. Make sure all four
rivets are properly inserted into the holes on the system board.

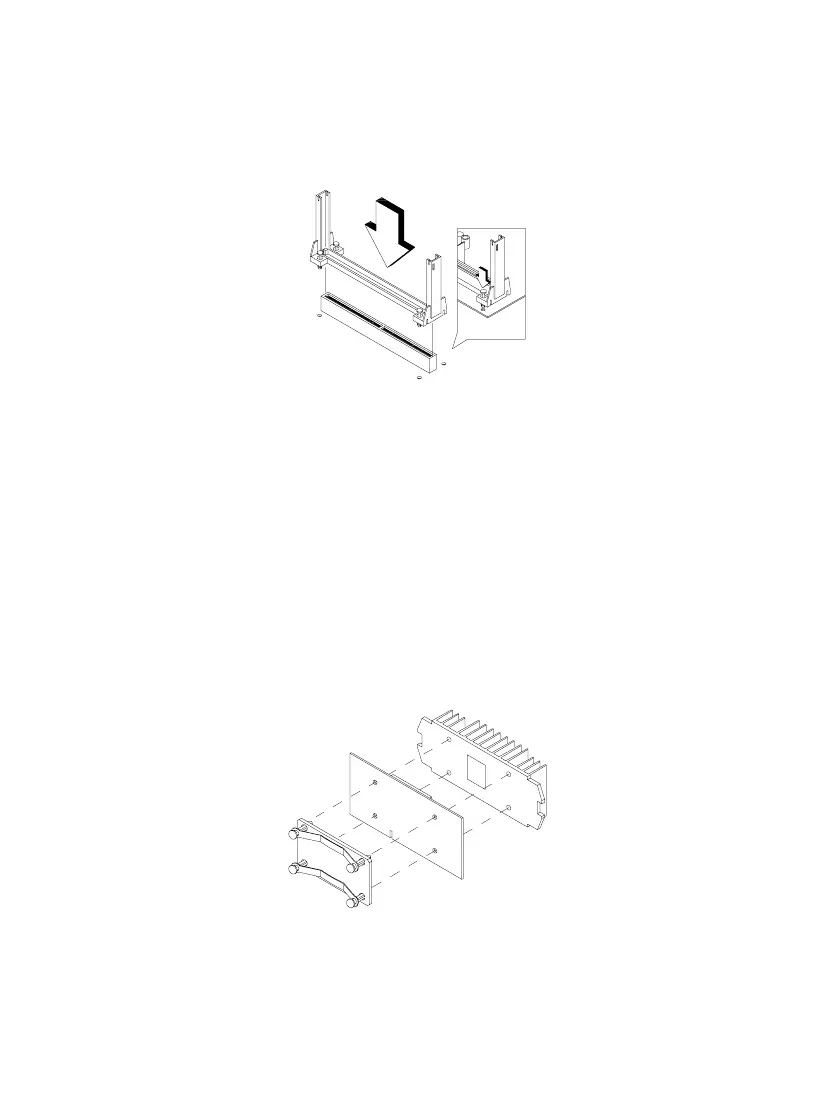

Figure 4-18 Installing the Retention Mechanism
3. Remove the Celeron processor from its protective packaging.
4. Attach the heatsink on top of the Celeron processor.
5. Align the fasteners underneath the processor card with the heatsink tabs.
6. Press the heatsink and fasteners together to lock the heatsink.
Figure 4-19 Attaching the Heatsink
