Acer 6000 - Removing the Housing Cover

AcerPower 6000 User’s Guide4-4

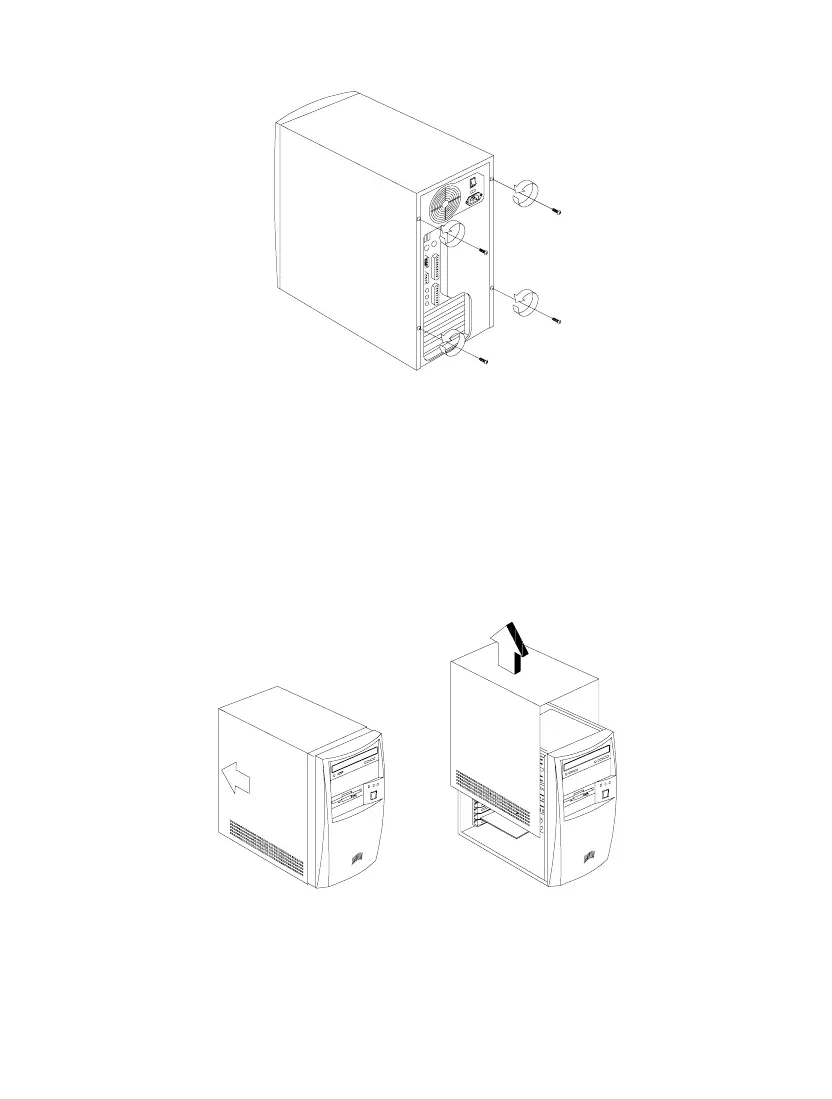

Figure 4-1 Removing the Screws
4. Push the housing cover slightly backward as indicated in Figure 4-2.
5. Pull the housing cover upward and remove it from the chassis.
Figure 4-2 Removing the Housing Cover
