Acer Aspire 5755 - Thermal Module Removal

Machine Maintenance Procedures 3-47
Thermal Module Removal 0
Prerequisite:
Mainboard Removal
1. Locate thermal module (A) on mainboard (Figure 3-50).

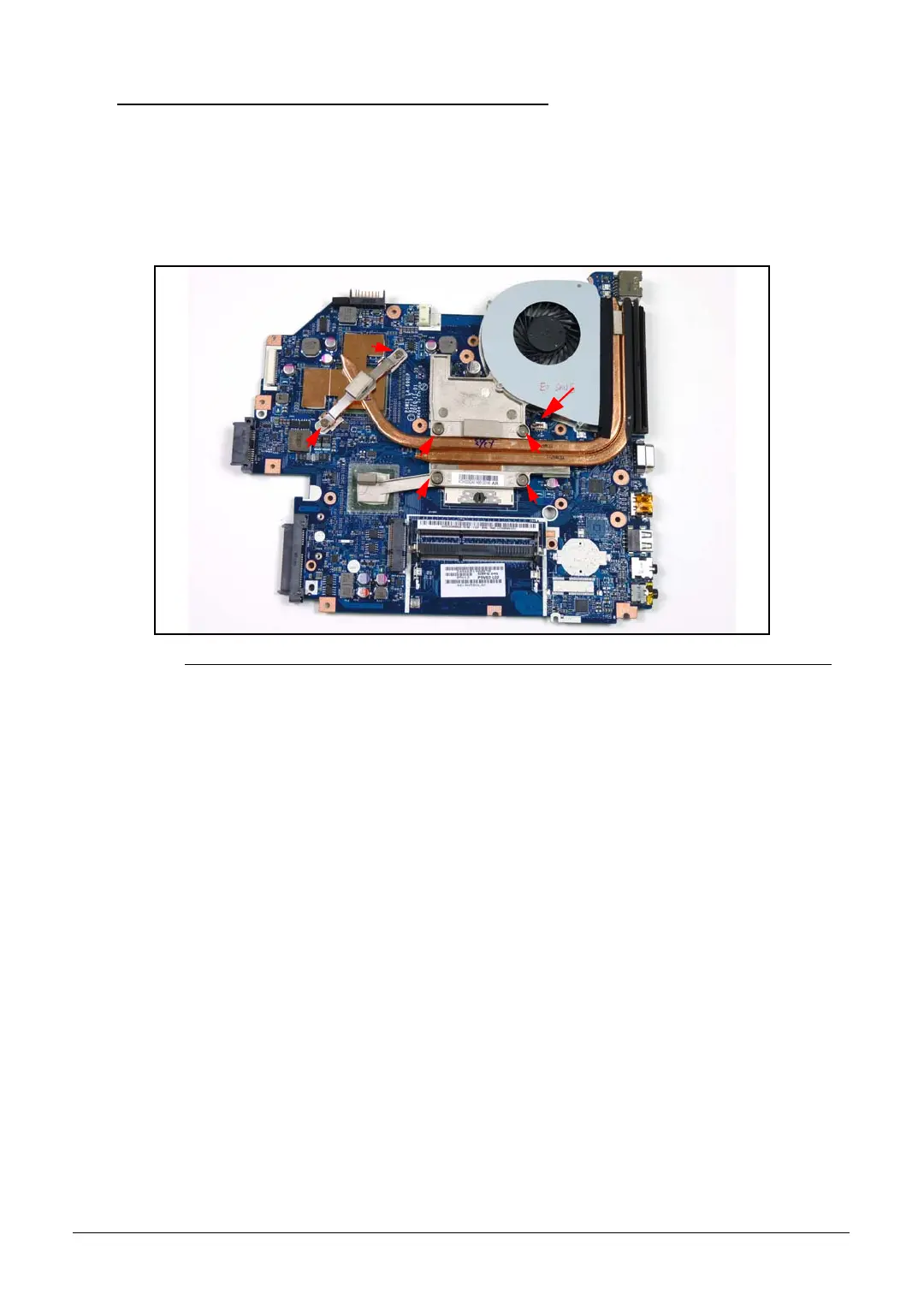

Figure 3-50. Thermal Module Removal
2. Remove module cable (B) from mainboard connector.
3. Remove four (4) screws (C/1 - C/4) and two (2) screws (D/5 - D/6) from mainboard.
4. Remove thermal module (A) from mainboard.
A
B
C/1
C/4
C/3
C/2
D/5
D/6
