Acer Aspire 5755 - WLAN Module Removal

Machine Maintenance Procedures 3-21
WLAN Module Removal 0
Prerequisite:
Base Door Removal
1. Locate WLAN (Wireless Local Area Network) module (A) on lower cover.

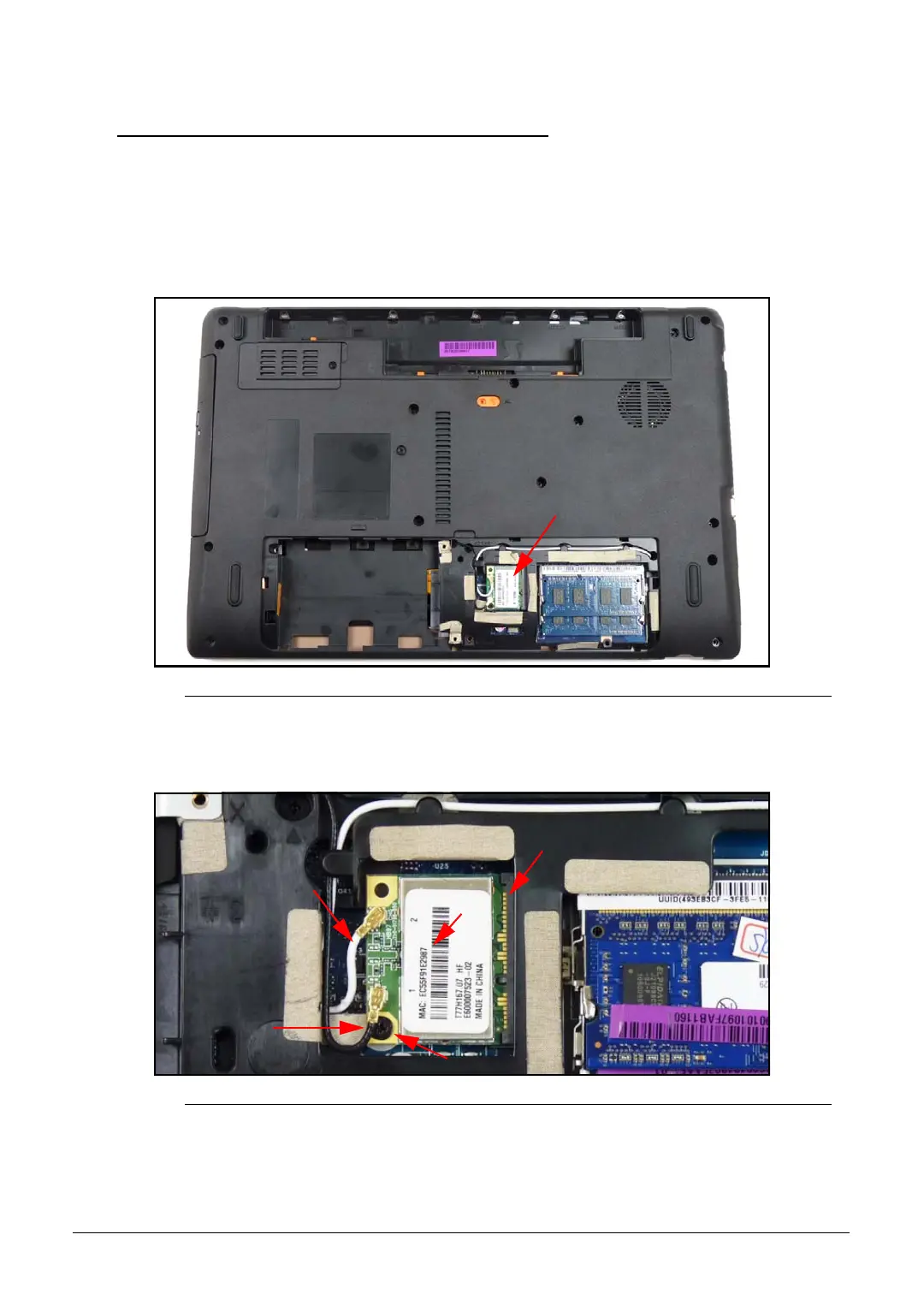

Figure 3-18. Lower Cover Overview
2. Disconnect main (B) and auxiliary (C) antenna cables from module.
Figure 3-19. WLAN Module
3. Remove screw (D) from mainboard.
4. Remove module from mainboard connector (E).
A
A
B
C
D
E
