3-58 Machine Maintenance Procedures
LCD Panel Removal 0
Prerequisite:
LCD Bezel Removal
1. Remove four (4) screws (A) from LCD cover. (Figure 3-64)

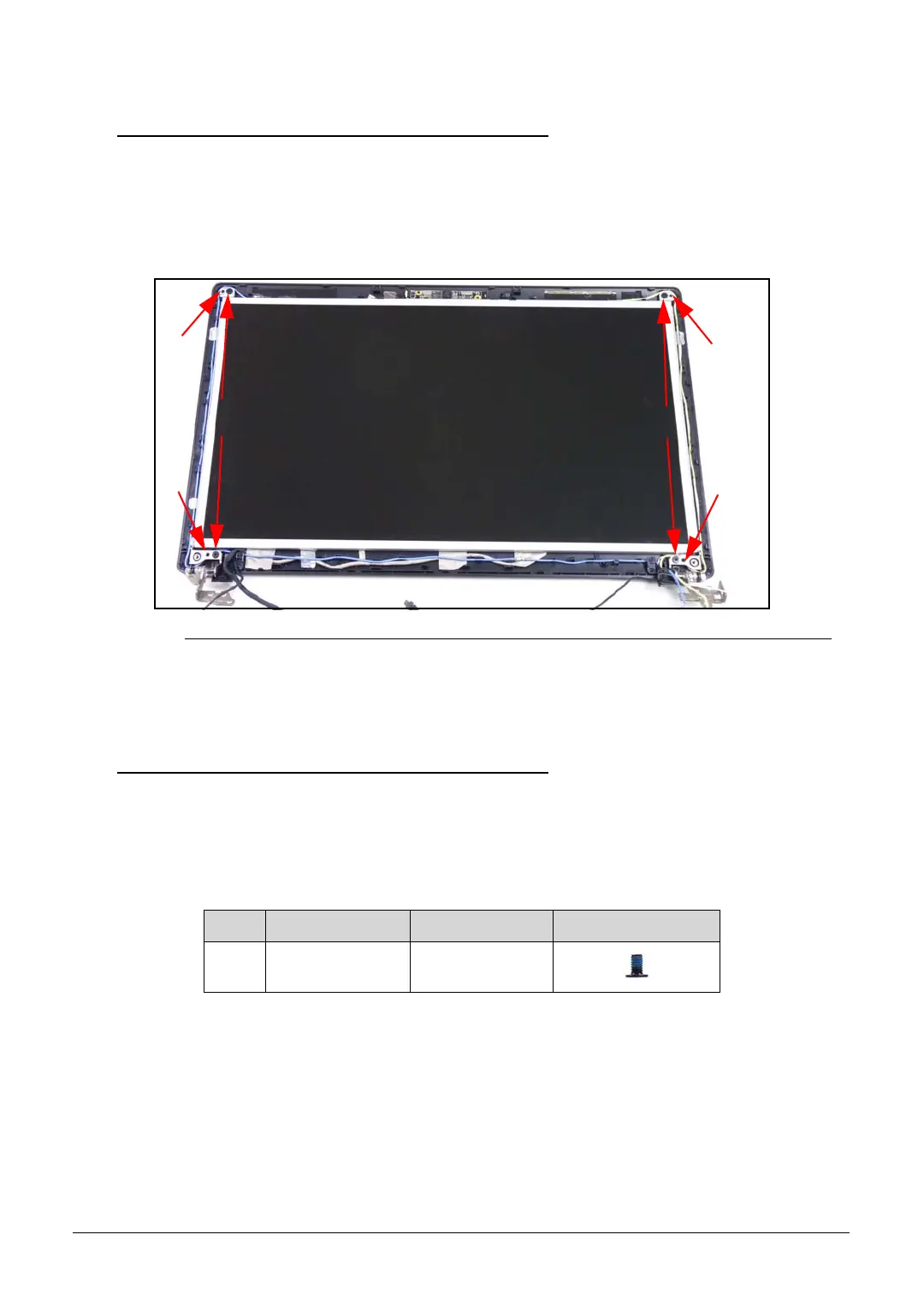

Figure 3-64. LCD Panel
2. Remove LCD panel (C) from guide pins (B) on LCD cover.
LCD Panel Installation 0
1. Align and install LCD panel (C) to guide pins (B) on LCD cover.
2. Install and secure four (4) screws (A) to LCD cover.
3. Install LCD bezel.
ID Size Quantity Screw Type
A M2.5x4.0 4
