3-16 Machine Maintenance Procedures
HDD Module Removal 0
Prerequisite:
Base Door Removal
1. Slide HDD (Hard Disk Drive) module (A) away from mainboard connector (B).
(Figure 3-12)

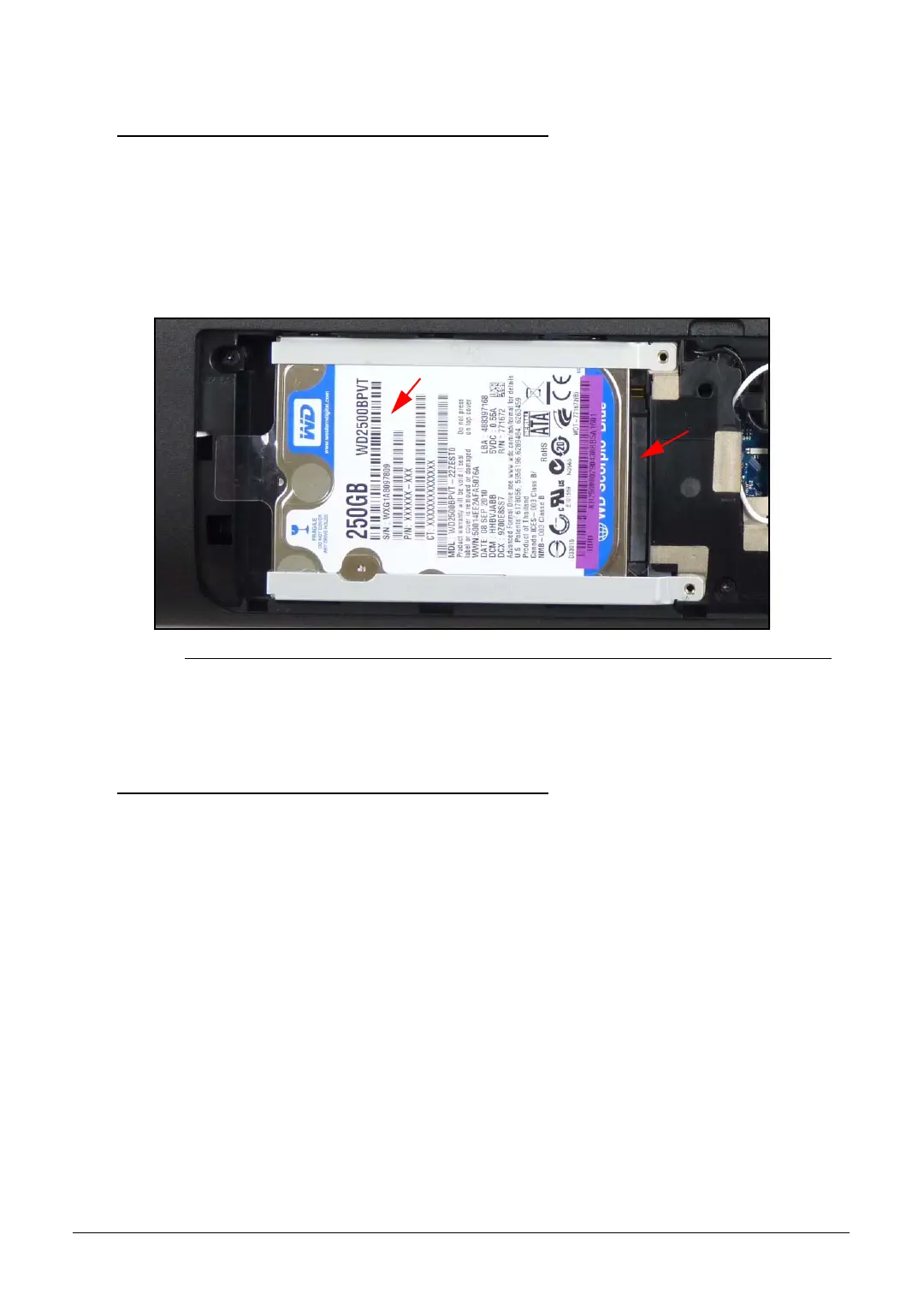

Figure 3-12. HDD Module
2. Remove module from bay on lower cover.
HDD Module Installation 0
1. Install module into bay on lower cover.
2. Connect module to mainboard connector (B).
3. Install base door.
SG_JV51_HR.book Page 16 Friday, July 8, 2011 5:58 PM
