Machine Maintenance Procedures 3-15
Base Door Removal 0
Prerequisite:
Battery Pack Removal

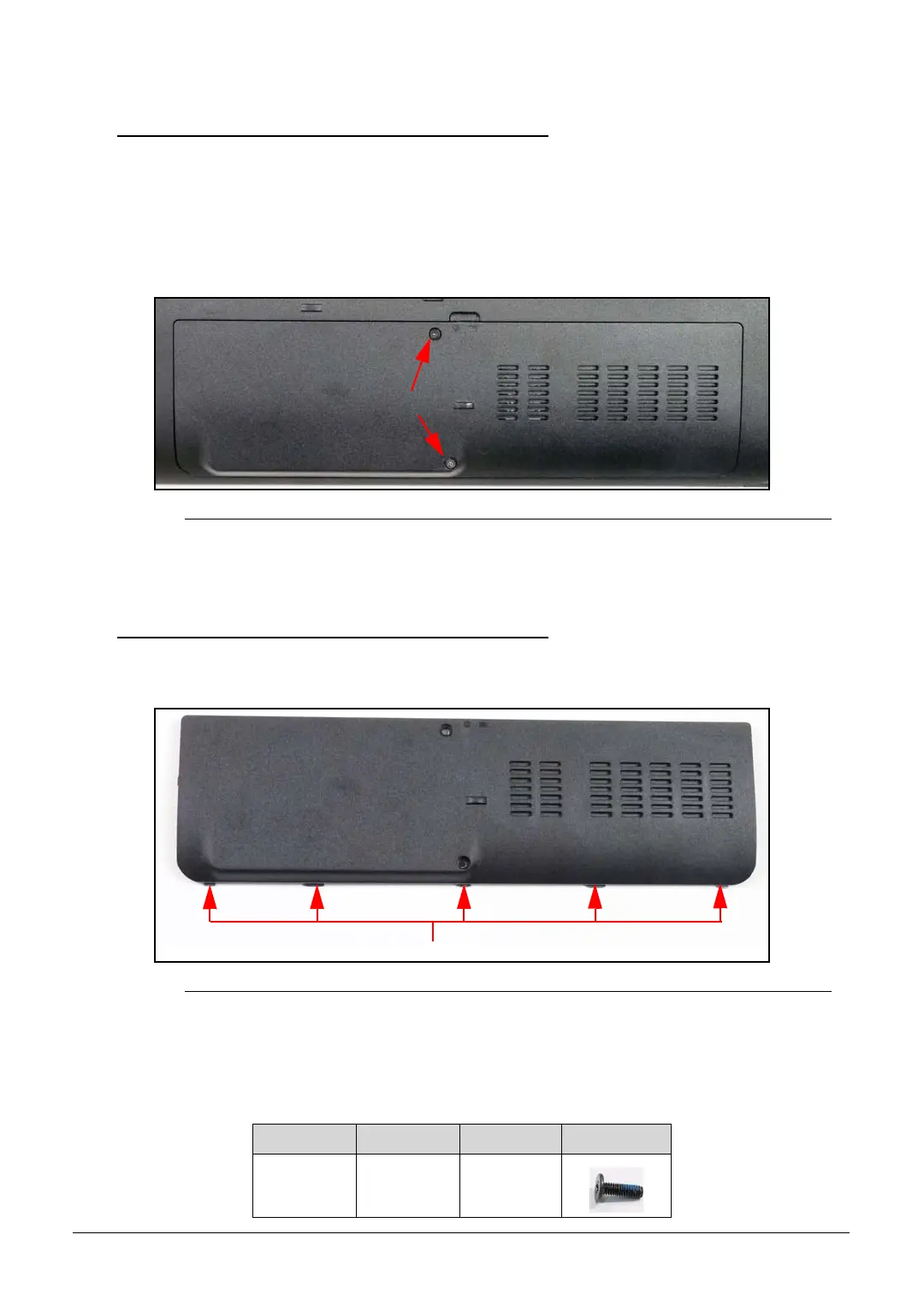

1. Remove two (2) screws (A) as shown in Figure 3-10.
Figure 3-10. Lower Cover Door Screws
2. Remove door from lower cover.
Base Door Installation 0
1. Insert door flanges (B, Figure 3-11) into slots on lower cover.
Figure 3-11. Base Door Flanges
2. Secure door to lower cover with two (2) screws (A) (Figure 3-10).
3. Install battery pack.
ID Size Quantity Screw Type
A M2.5x8.0 2
SG_JV51_HR.book Page 15 Friday, July 8, 2011 5:58 PM
