Machine Maintenance Procedures 3-63
3. Remove EMI (Electromagnetic interference) foam (E) and aluminium foil (F) covering left
WLAN and 3G antennas from LCD module cover. (Figure 3-69)

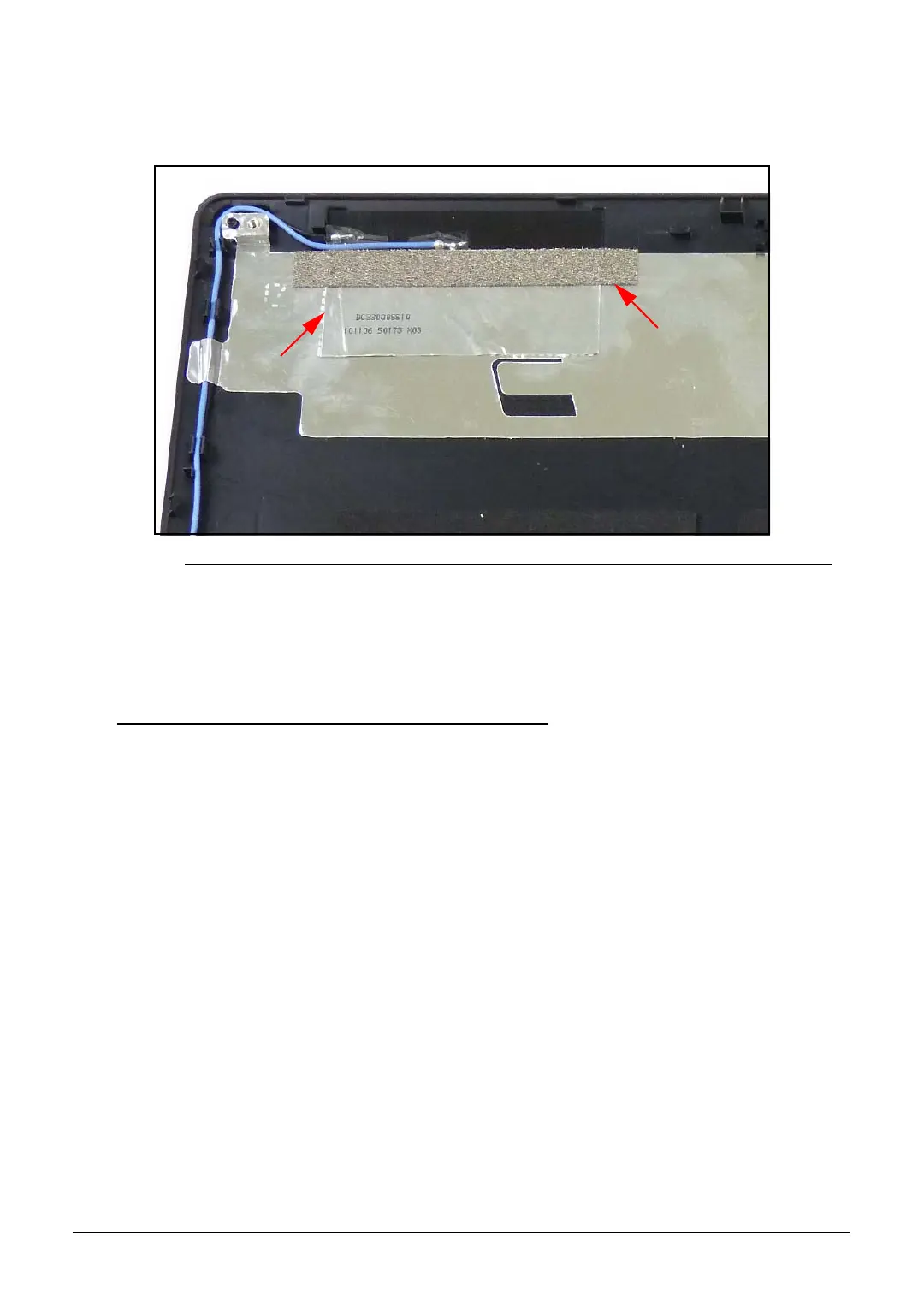

Figure 3-69. 3G and WLAN EMI Foam and Aluminium Foil
4. Remove left WLAN and 3G antennas (B) from LCD module cover. (Figure 3-68)
5. Repeat steps 1 to 4 for right WLAN and 3G antennas (C).
WLAN and 3G Antenna Installation 0
1. Install left WLAN and 3G antennas (B) on LCD module cover. (Figure 3-68)
2. Secure EMI foam (E) and aluminium foil (F) covering left WLAN and 3G antennas to LCD
module cover. (Figure 3-69)
3. Install left WLAN and 3G antennas (B) in cable guides. (Figure 3-68)
4. Secure foil tabs (A) covering left WLAN and 3G antennas (B) to LCD module cover.
5. Repeat steps 1 to 4 for the right WLAN and 3G antennas (C).
6. Install LCD panel.
SG_JV51_HR.book Page 63 Friday, July 8, 2011 5:58 PM
