ACUTRONIC fabian HFO - SpO2 Module Configuration

Accessories and options 119
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10
12.3 SpO
2
module
12.3.1 Setting up the Masimo sensor
To enable the SpO
2
measurement, the module must be enabled. This can be done in the menu of
the SpO
2
module.

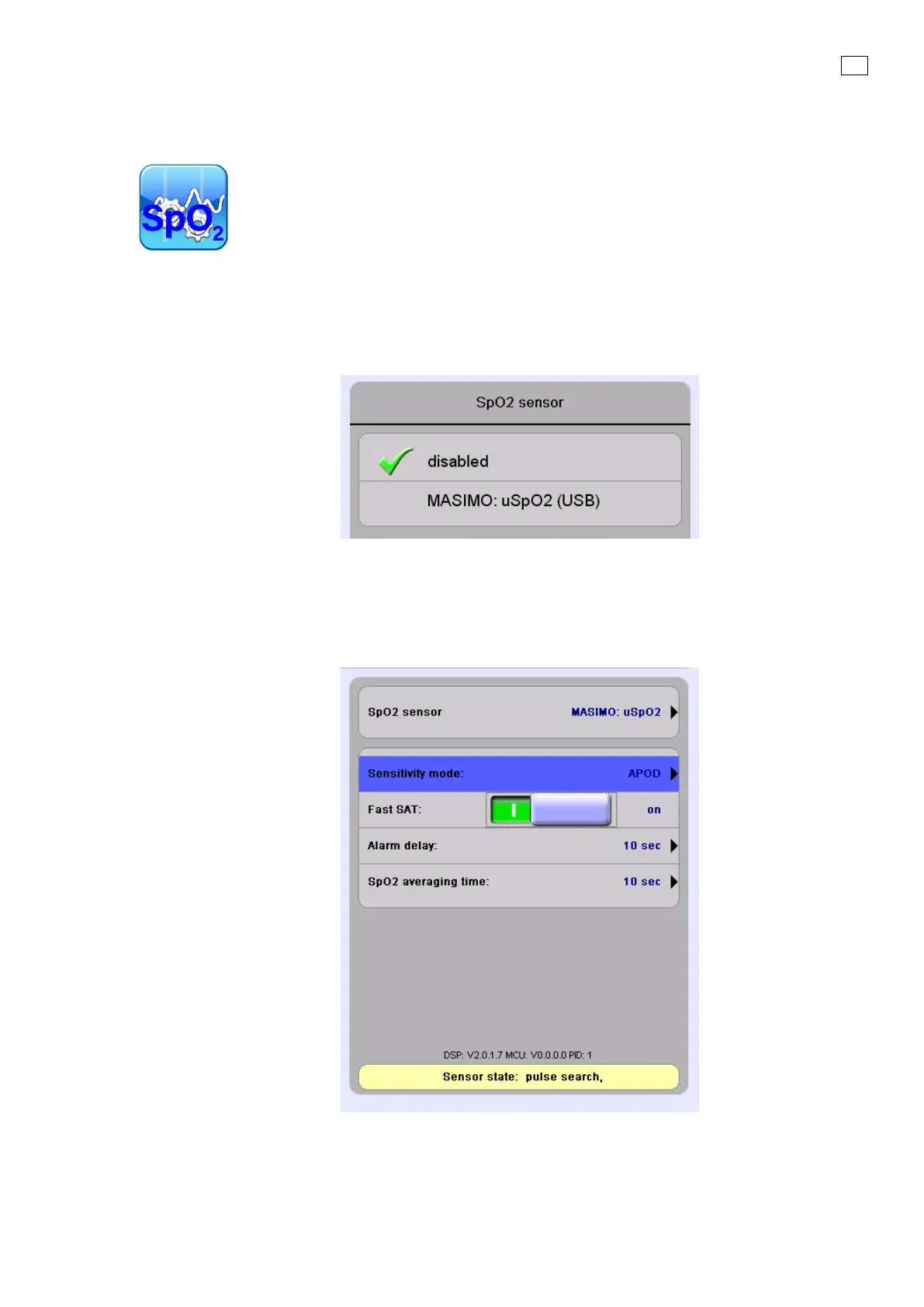

Figure 24 Enable SpO
2
You can choose from the SpO
2
menu, different module settings described in the following sections.
Figure 25 SpO
2
Settings and Information
