ACUTRONIC fabian HFO User Manual

18 System overview
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10
#

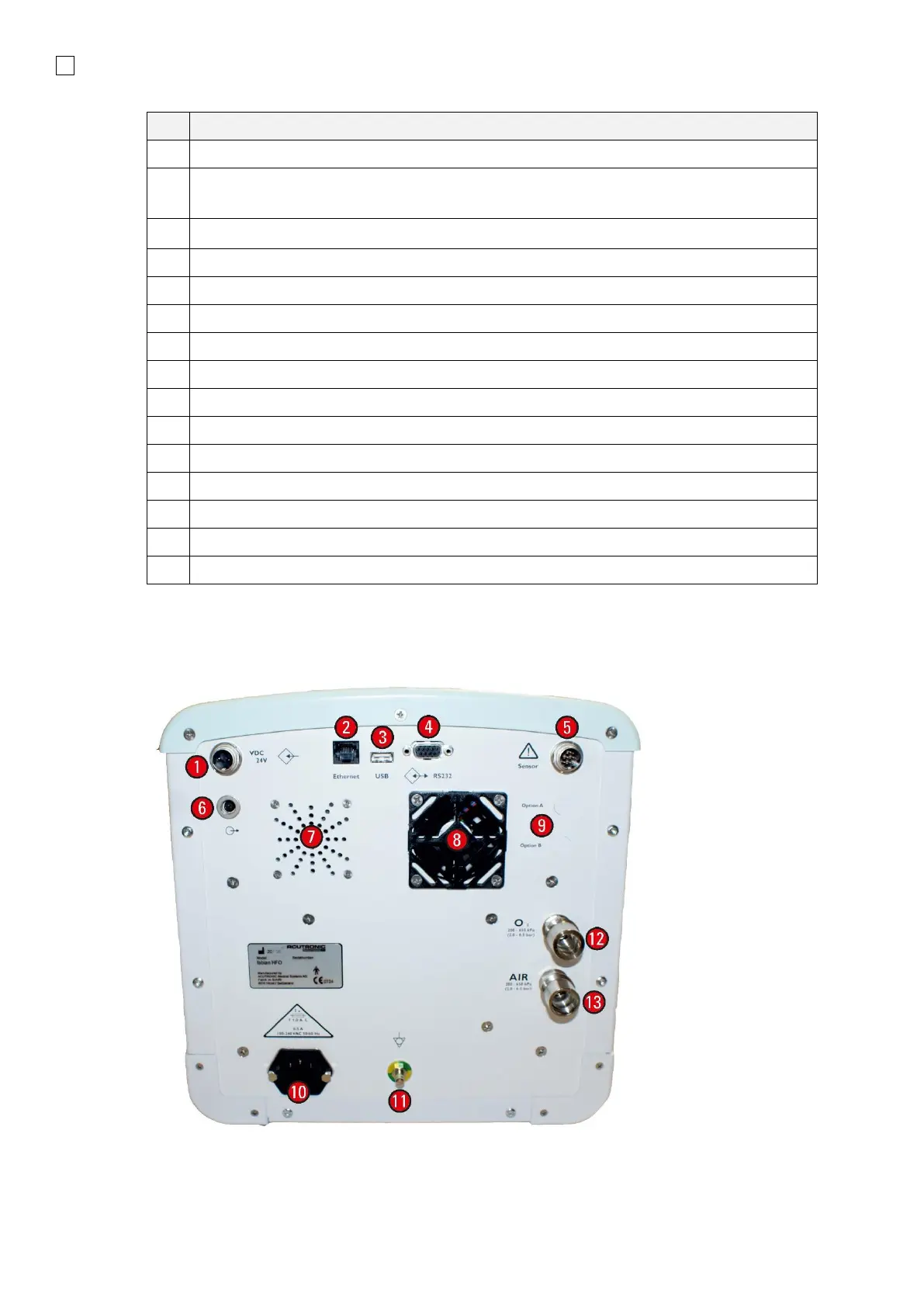

Description
1.
Connector for 24V DC external power supply (No charging!)
2.
Network jack for data management, PDMS
(For connection to network with minimum 3 kV galvanic isolation) (disabled)
3.
USB port for data output, Software update and connection for Masimo SpO
2
module.
4.
DB9 RS-232 port for PDMS
5.
Flow Sensor 7-pin Connector
6.
Nurse Call Connector
7.
Video In, VGA (not used)
8.
Loudspeaker (Audio)
9.
Fan
10.
etCO
2
sensor (optional)
11.
Nebulizer (not used)
12.
O
2
supply connector 2.0 – 6.5 bar / 40 l/min
13.
Pressurised air connector 2.0 – 6.5 bar / 40 l/min
14.
Power Connector (fuse 1.25 AT)
15.
Equipotential connection
3.3.5 Initial hardware model
