Special procedures 155
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10
17 Special procedures
17.1 Use of NO (Nitric Oxide)
IMPORTANT:

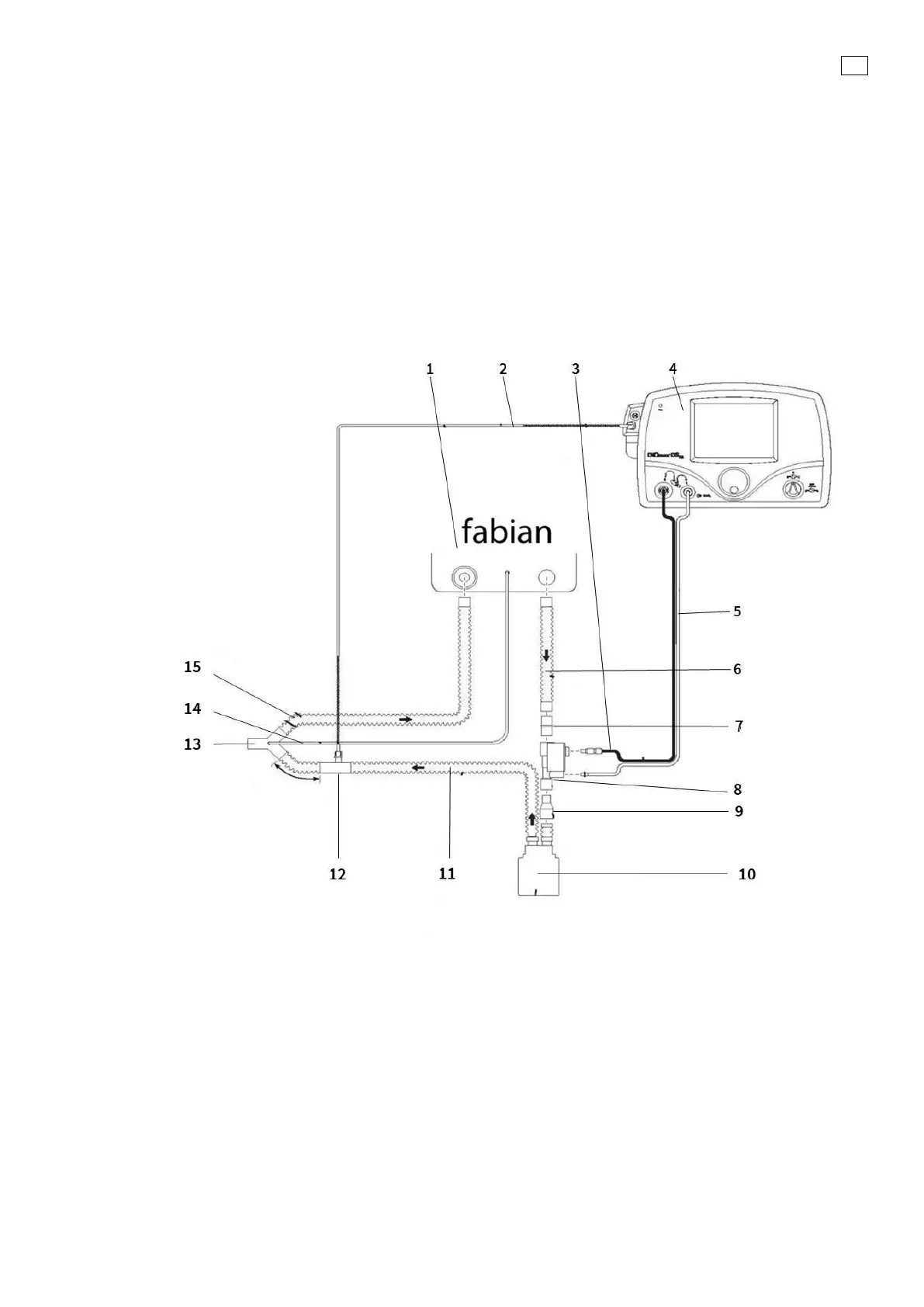

If Nitric Oxide Systems like the InoMax or InoVent are used to deliver NO, make sure the setup of the
circuit is done as per below graphic. It is important to place the flow sensor of the NO delivery system
directly at the fresh gas outlet of the fabian HFO.
The measuring line must be placed close to patient in Inspiratory Limb.
1. fabian Ventilator
2. Patient Gas Sample Line with Nafion
3. Injector Module Electrical Cable
4. INOmax DSIR
5. NO/N2 Injector Tube
6. Connecting Tube (15 inches)
7. 15M x 15M Adapter
8. Injector module
9. 22F x 15M Adapter
10. Humidifier
11. Inspiratory Breathing Circuit Hose
12. Gas Sample Tee
13. Patient Wye
14. Proximal Pressure Tube
15. Expiratory Breathing Circuit Hose
