ACUTRONIC fabian HFO User Manual

System functions and displays 23
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10

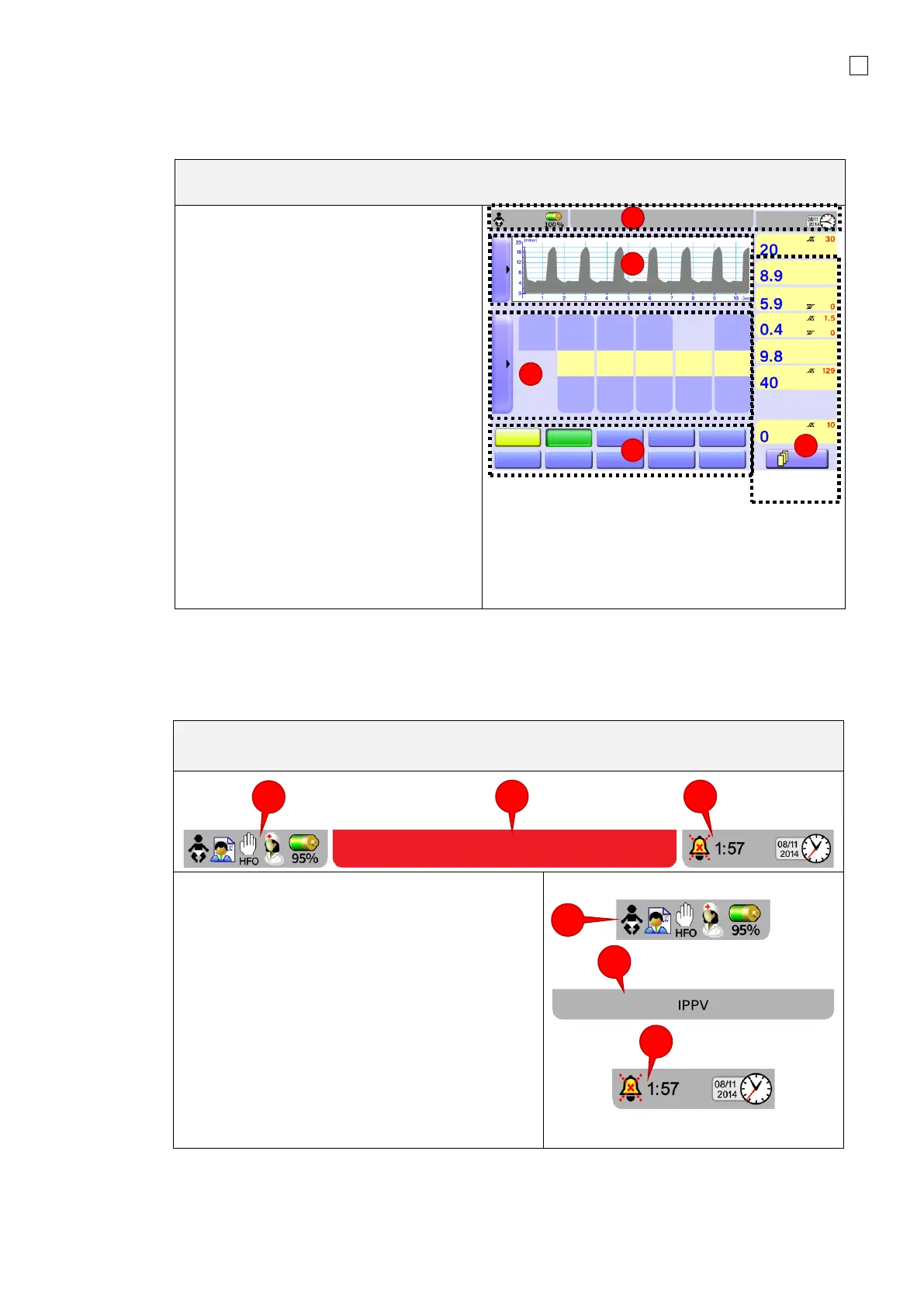

4.2.2 Display screen
The display screen shows various information, setting and display areas depending
on the display settings or menu.
1. Information bar indicating:
• Battery status,
• Time/date,
• Status information,
• System and alarm information,
• Patient size symbol
2. Numeric field / alarm limits.
3. Function field (controls of ventilation)
4. Parameter settings and controls
fields.
5. Operating mode selection.
Depending on the display mode selected,
individual fields can be shown / hidden.
Display field options will be described
later.
4.2.3 Information bar
The Information bar displays from general information to displaying alarms.
It is divided into three sections.
1. The Information bar indicates the following
among other things:
• Neonatal or Pediatric mode
• Patient Data available
• Manual Breath in HFO mode
ON/OFF
• Nurse Call Active / Inactive
• Battery Charge Status
2. Ventilation mode, information and alarm
message display
3. Alarm mute (time remaining until audible alarm
reactivates) Time / Date.
1
2
3
1
2
3
1
2
3
4
5
