System operation 43
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10

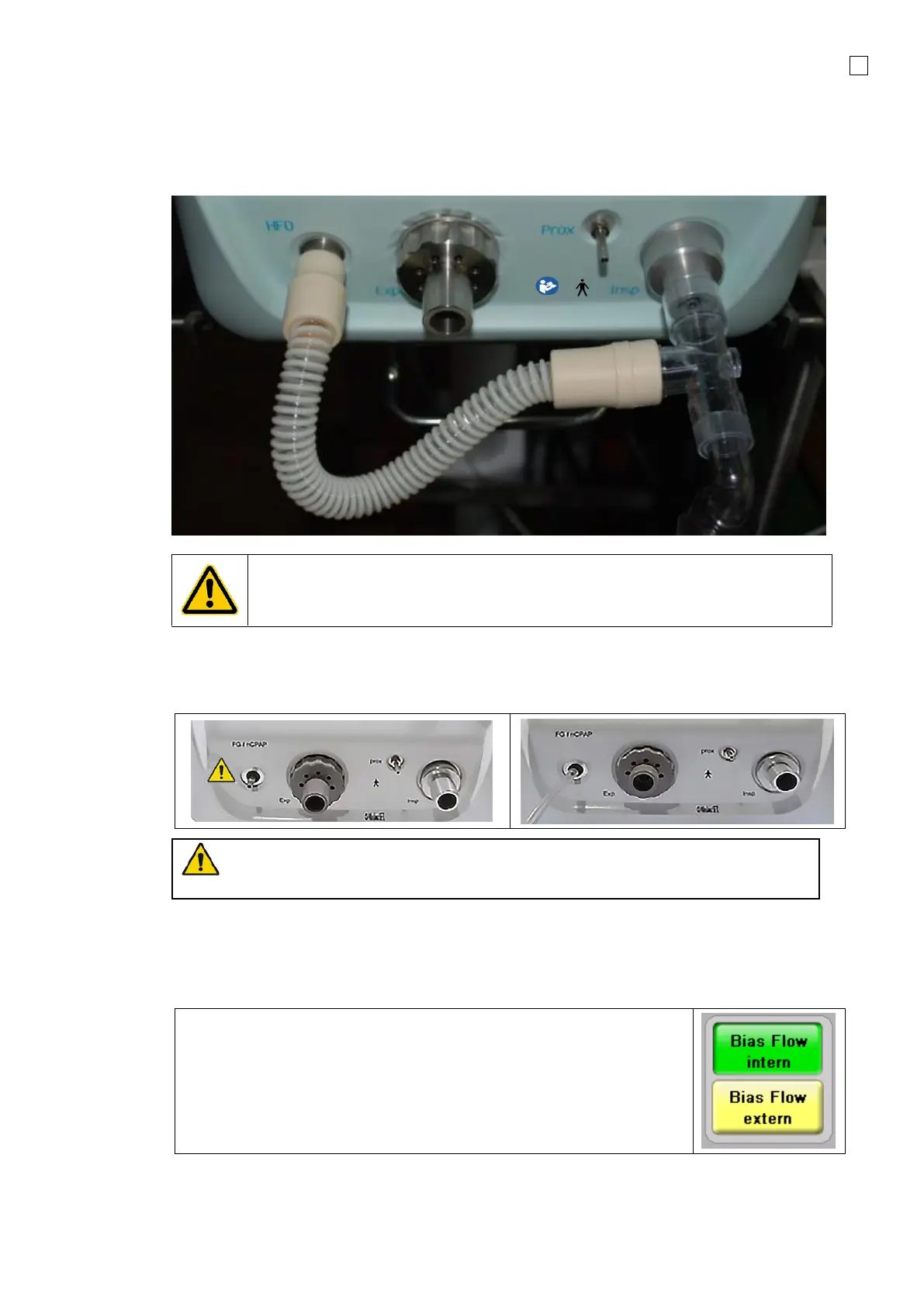

5.1.3.1 HFO Tube Set connection with serial number prefix 20 / AH
Connection to HFO Module:
The HFO outlet connector must be connected to the inspiratory limb. Connection
to expiratory limb, will result in incorrect ventilation!
5.1.3.2 Connect the Nitric Oxide (NO) tubing set and flow sensor to
devices with serial number prefix AI / AL
WARNING:
With this setting, flow will only come from the FG port, and no flow from the Insp port.
1. Connect tube “REF: 153001.01” with the NO Flow Sensor.
2. Place the NO flow sensor on top of the water chamber of the humidifier with a T-piece connector
in between.
3. Select in Quick Launch; External Bias Flow. The button will turn Green when selected.
Bias Flow intern: Use when there is no External NO Flow sensor.
Bias Flow extern: Usage of a NO device needs to measure the
Bias Flow with an External Flow sensor.
