ACUTRONIC fabian HFO User Manual

System operation 47
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10

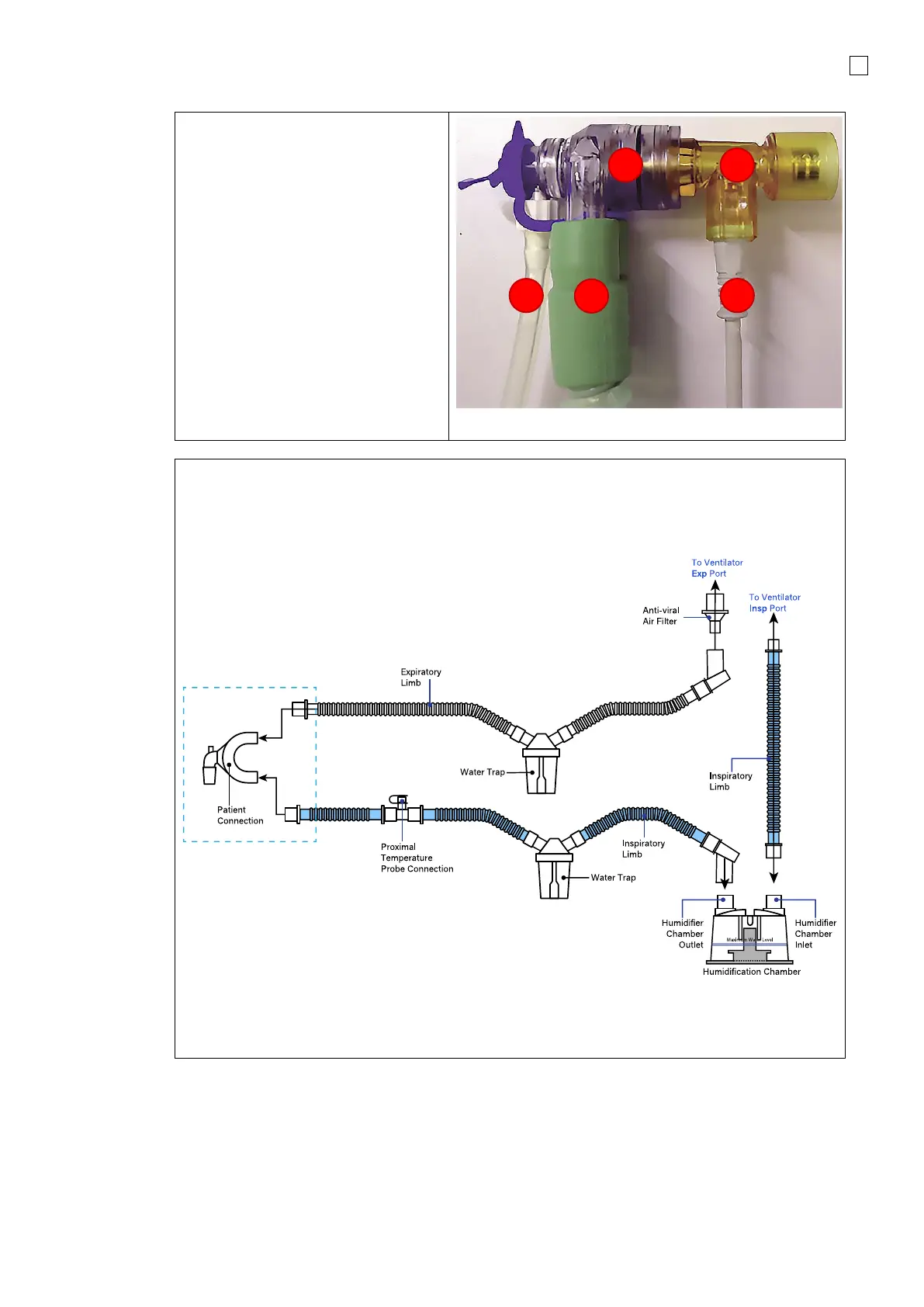

Assemble the tubing as required:
• Connect Inspiratory / Expiratory
line and Pressure limb to Y-
piece.
• Connect Flow-sensor to Y-piece.
• Connect Flow-sensor cable to
Flow-sensor.
1. Ventilation Circuit
2. Y-piece
3. Flow sensor
4. Flow sensor connection cable
5. Proximal pressure measurement
line
Prepare Humidifier according to manufacturer specifications and connect to tubing.
If the humidifier does not have an inspiratory line heater, water traps must be installed in the
inspiratory and expiratory limbs.
When using an inspiratory heater, a water trap must be installed at the expiratory end.
1
5
4
2
3
