118

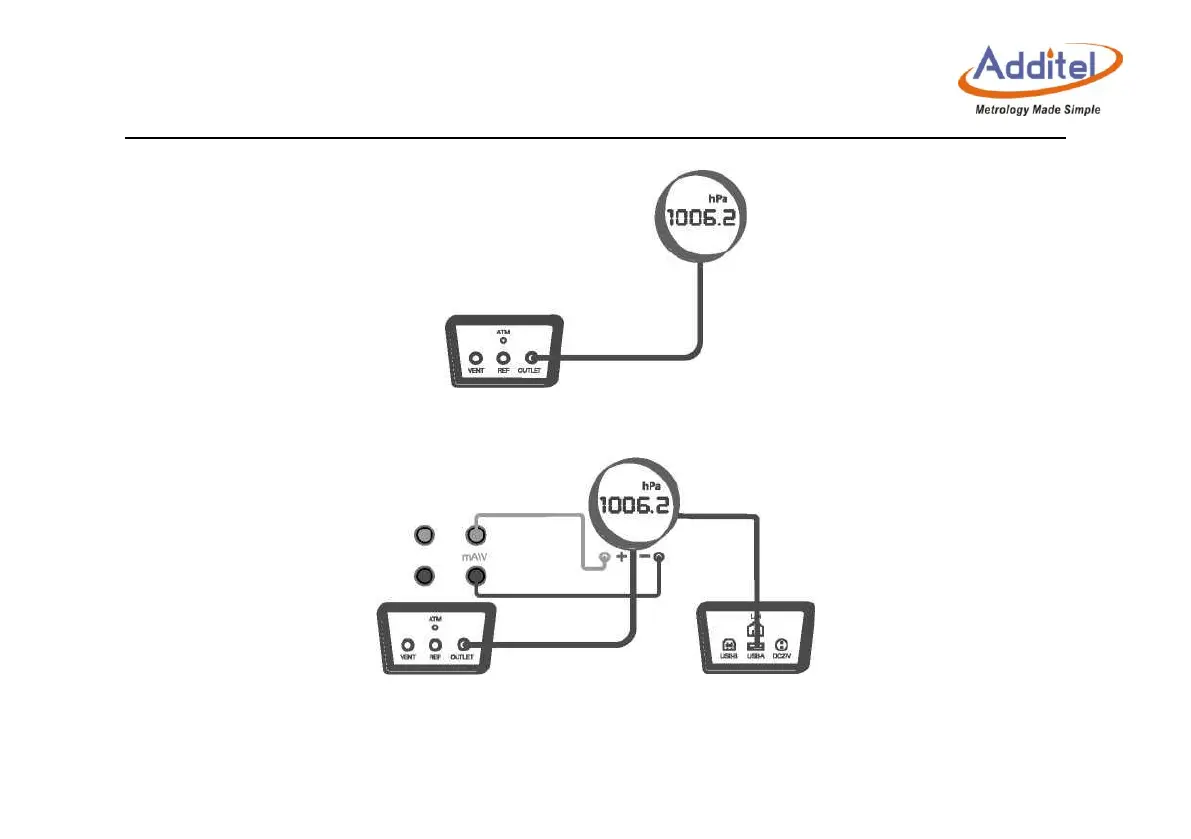

If calibrating the VAISALA digital barometer, connect as shown in Figure 5-7.
Figure 5- 6 Calibration of the general digital barometer
Figure 5- 7 Calibration of the VAISALA digital barometer
2. New task
Select the “digital barometer” in the test type list, and input the information of the barometer.
