5.2.7 Signal isolator
1. Connection

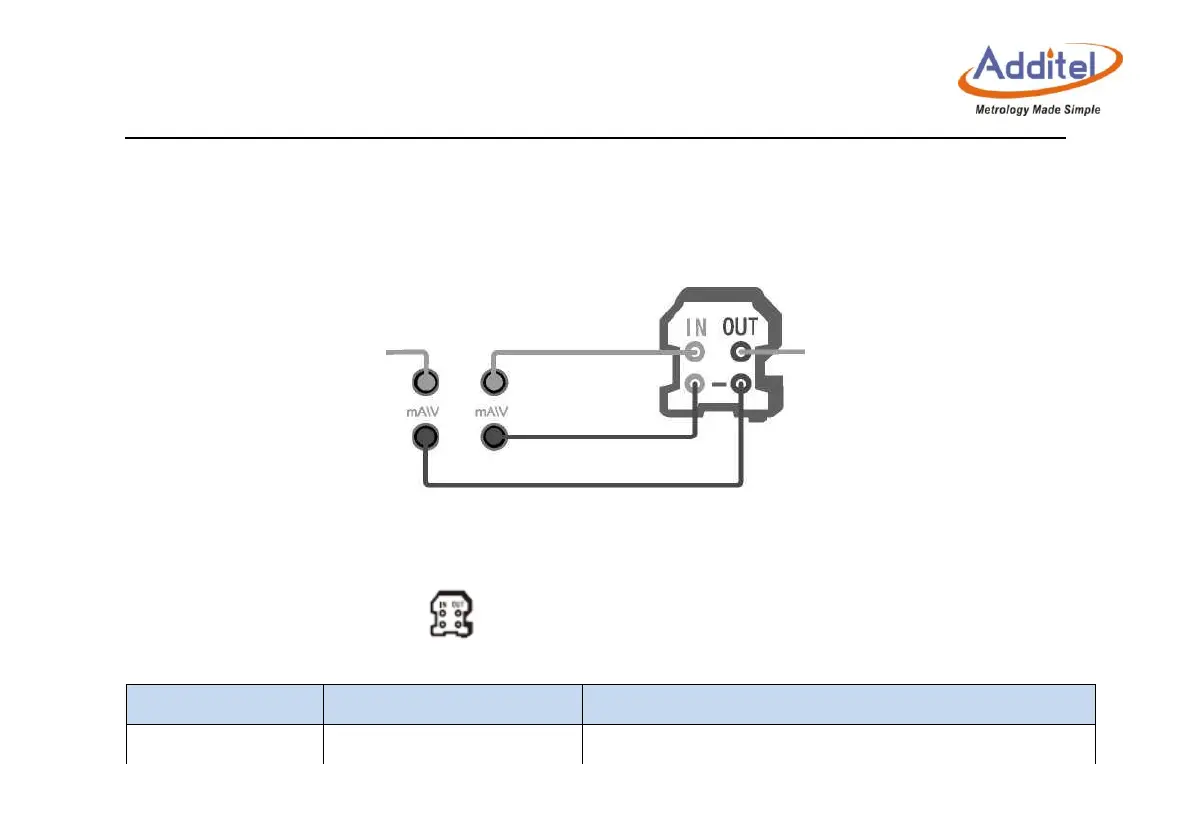

 Connect the calibrator and the signal isolator as shown in Figure 5-3;
Figure 5- 3 Calibration of the signal isolator
2. New task
Select the “signal isolator” icon in the test type list, and input the information of the calibrated
signal isolator.
Item
Effective value
Description
Name
Letter, numeral, symbol
Name of the signal isolator
