ADPRO iFT Series Hardware Installation Manual

27817_08 59

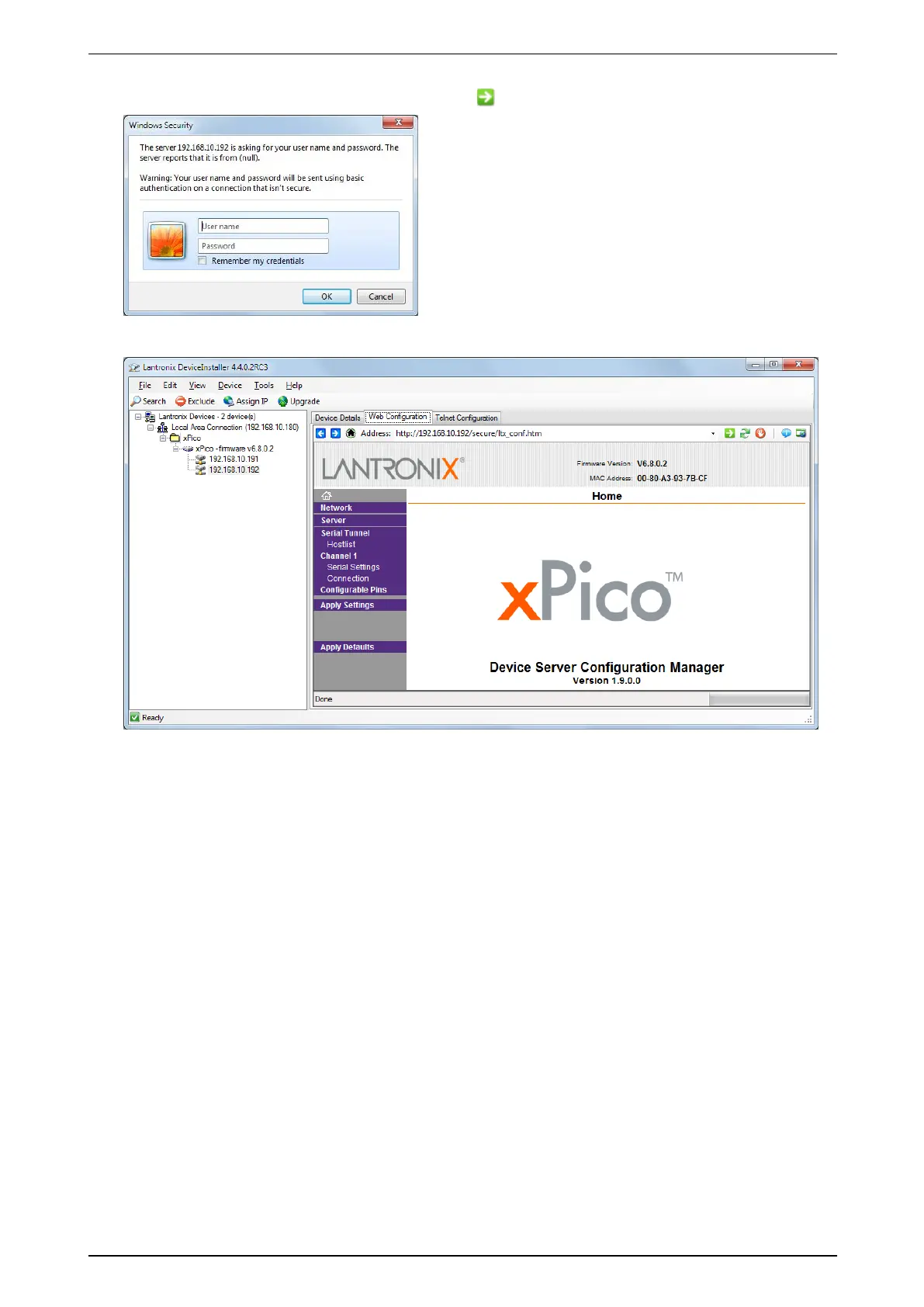

5. ClicktheWeb Configuration tab,andthenclickthe buttontoconnecttothemodule.

6. Leavetheusernameandpasswordblank;justclickOK tocontinue.

Next,youwillmakesurethatthemoduleusesastaticIPaddress.
