iFT Series Hardware Installation Manual ADPRO

60 27817_08

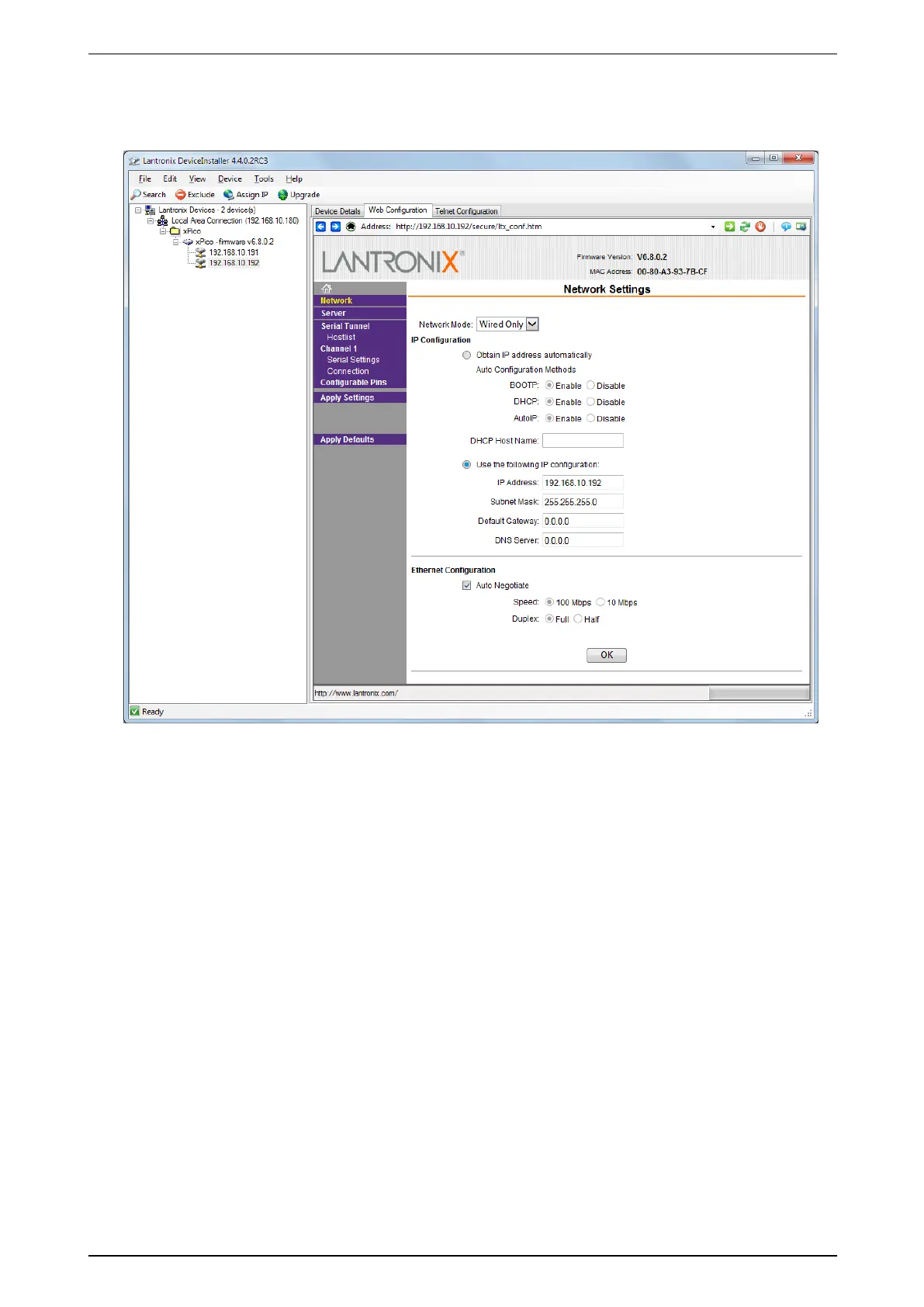

7. ClickNetwork,andprovidethecorrectnetworksettings.Theexamplescreenaboveshowsthesettingsfor

anIPmodulewithIPaddress192.168.10.192.HoneywellrecommendstouseIPaddressesinthesame

rangeasthelocalnetworkoftheXOdevice(eth0;notineth1whichistherangeoftheIPcameranetwork).

8. ClickOK tosavethesettings.

Next,youwillsetuptheserialportcommunication.
