ADT NVR4200 Series User Manual

Hybrid Standalone NVR User Guide 4 Web Service

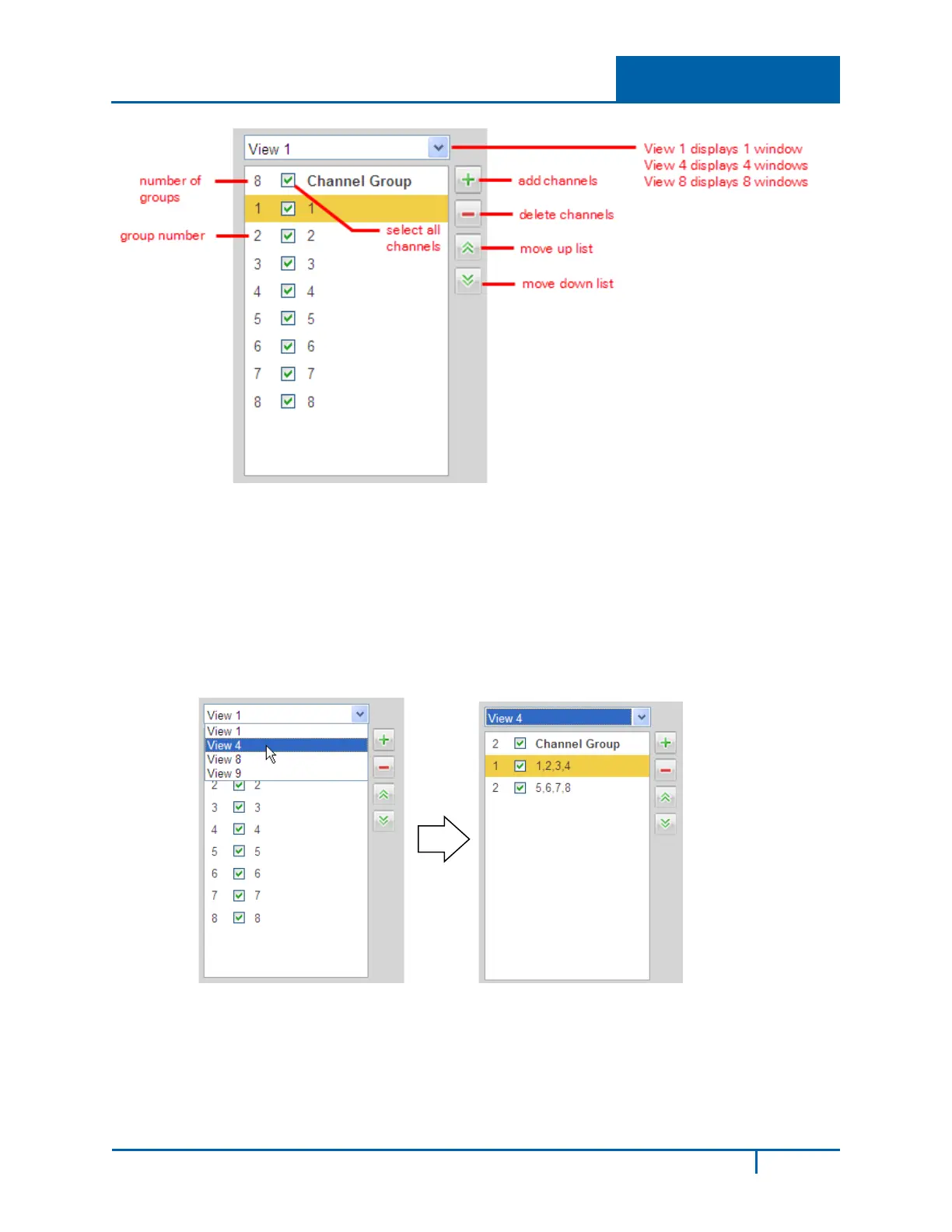

Example using Split
The following example details how to set up add channel groups to a 4- window split and then
change the order in which the channels will be displayed.
1. Use the Window Split drop-down list to select View 4. This configuration contains two
groups:
• Group 1 will simultaneously display channels 1 through 4 for the set interval and then
• Group 2 will simultaneously display channels 5 through 8
2. Click the + button to add a new channel group. The Add Channel Group dialog opens.
3. Click numbers 1, 3, 5, and 7 to select only odd channels for this new group.
NVR4200 Series User Guide
203

ADT NVR4200 Series Specifications

General

Brand	ADT
Model	NVR4200 Series
Category	Network Hardware
Language	English
