6TASYS101-1E
TOTAL ACCESS 3000/3010
SYS-101
Page 8 of 46
Total Access
®
3000/3010 System Manual© 2003, ADTRAN, Inc.

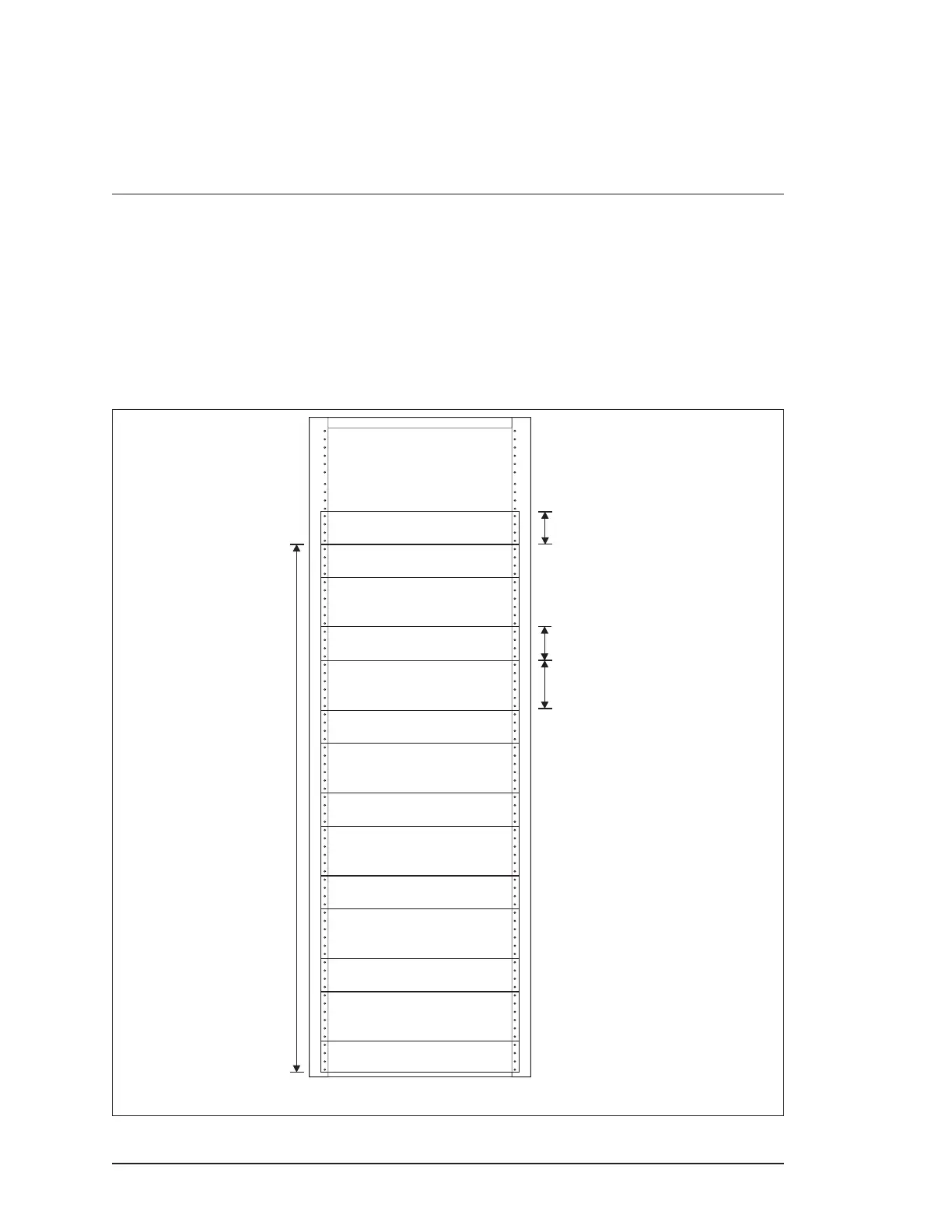

Figure 3. Seven-Foot Bay for Rack with One-Inch Mounting Spaces
Fuse Panel
Heat Baffle #6
Total Access Shelf #6
Heat Baffle #5
Total Access Shelf #5
Heat Baffle #4
Total Access Shelf #4
Heat Baffle #3
Total Access Shelf #3
Heat Baffle #2
Total Access Shelf #2
Heat Baffle #1
Heat Baffle #0
Total Access Shelf #1
Fuse Panel(s) are
4 inches in height.
Total Access Shelf
is 6 inches in height.
Six Total Access
Shelves require 64 inches
in a 7-foot bay.
7-Foot Bay
Heat Baffle is 4 inches in height.
2.3 Bay Configurations
Total Access 3000/3010 is available in a 7-foot bay configuration. The actual number
of services that can be provisioned from a particular bay depends on the type and
concentration of those services. Some arrangements draw more power than others and
may impact total power consumption to a higher degree. See Figure 3 for an example
of a six-shelf installation.
