Total Access
®
3000/3010 System Manual
6TADLP708-1E
TOTAL ACCESS 3000/3010
DLP-708
Page 2 of 2
© 2002, ADTRAN, Inc.
Perform Steps Below in the Order Listed
1.2 Detail Level Procedure 708
1. Carefully line up the two screw holes in the adapter module with the holes
drilled and threaded in the backplane.
NOTE
The 24 pins on the underside of the adapter module must line up with the
24-pin female connector on the backplane. Do not force the adapter into place.
There are also two guide pins on the adapter at either end of the 24-pin
connector that line up with holes on the backplane to facilitate alignment.
2. Carefully press the adapter into place on the backplane socket.
3. Using a #1 Phillips-head screwdriver, secure the adapter to the backplane
with the two screws provided.
1.3 Followup Procedures
Once this procedure is complete, return to the procedure which called out this DLP and
continue with the tasks indicated there.
2298
RX
TX

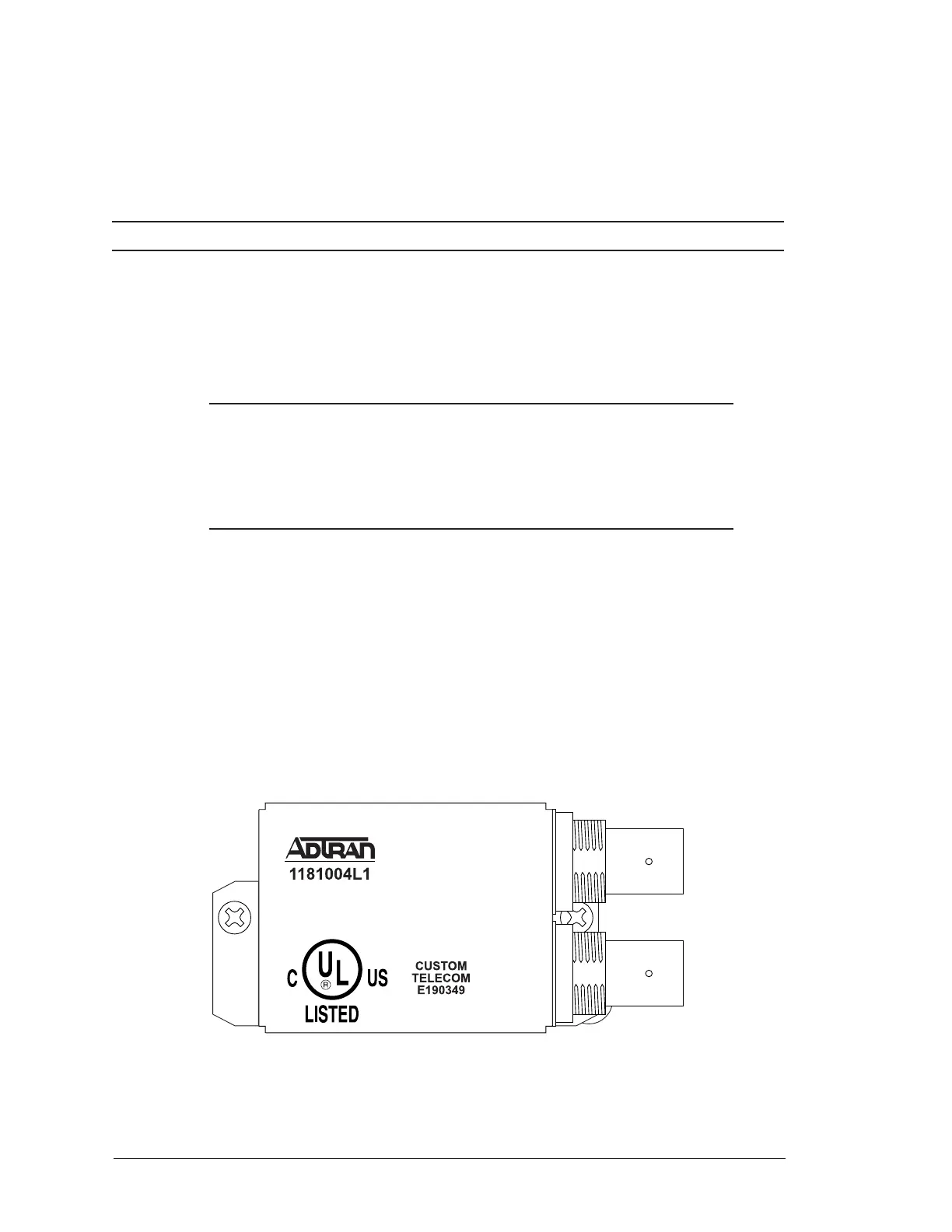

Figure 1. High-Speed Connector Module
