6TAENG201-1E

TOTAL ACCESS 3000/3010

ENG-201

Page 29 of 32

Total Access

3000/3010 System Manual

1.7 Local Loop Connections for TDM Applications

Total Access 3000/3010 supports two types of local loop connections: copper pair and

optical fiber. All local loop connections are serviced through access modules.

1.7.1 Copper Loop Support

Copper pairs in Total Access 3000/3010 are delivered through 64-pin/50-pin AMP

Champ connectors on the backplane. Each slot has access to a total of eight copper

pairs, two of which are generally reserved for a DSX-1 network interface. Each of the

eight 64-pin/50-pin AMP Champ connectors delivers a single copper pair to each of

the 28 access module slots in the system.

The AMP Champs on the backplane are designated as follows: Pairs 1 through 4 are

generally local loop copper pairs. Pairs 5 and 6 can be a single DSX-1 network

interface (DSX-1 “B”) or local loops. Pairs 7 and 8 are generally reserved for DSX-1

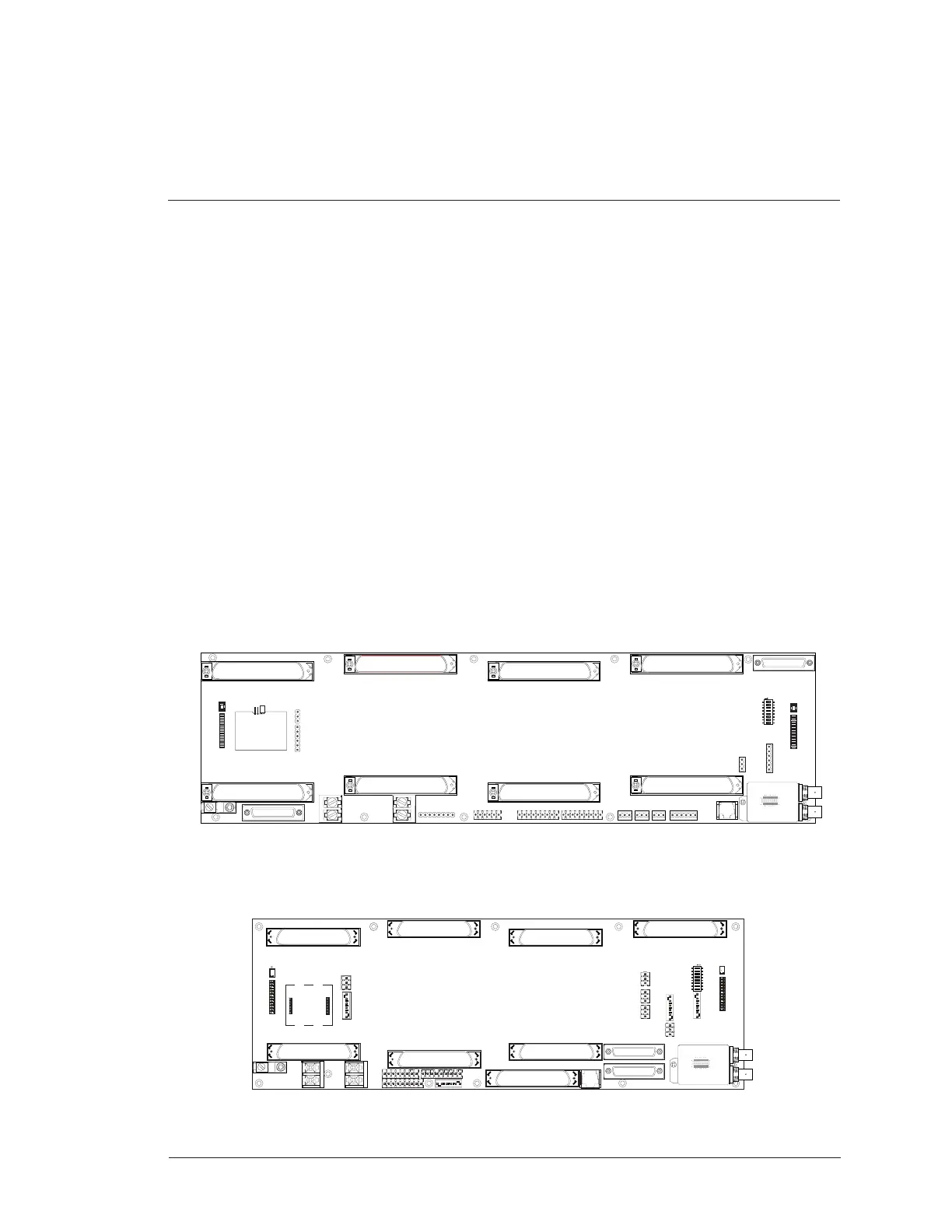

for each slot (DSX-1 “A”). See Figure 13 and Figure 14 for the layout of backplane

AMP Champ connectors for the Total Access 3000/3010.

This configuration supports the DSX-A as being dedicated, while Pairs 5 and 6 can be

routed to either the DSX or to the MDF.

Figure 14. Eight AMP Champ Connectors with Associated Labels for the

Total Access 3010

134

Pair 1

Pair 2

Pair 3

Pair 4

Pair 5

Pair 6

Pair 7

Pair 8

2298

J34

MDF

MDF or DSX-1 "B"

DSX-1 "A"

Figure 13. Eight AMP Champ Connectors with Associated Labels for the

Total Access 3000
