1.1.2 T1 Circuit With The Use of a Repeater

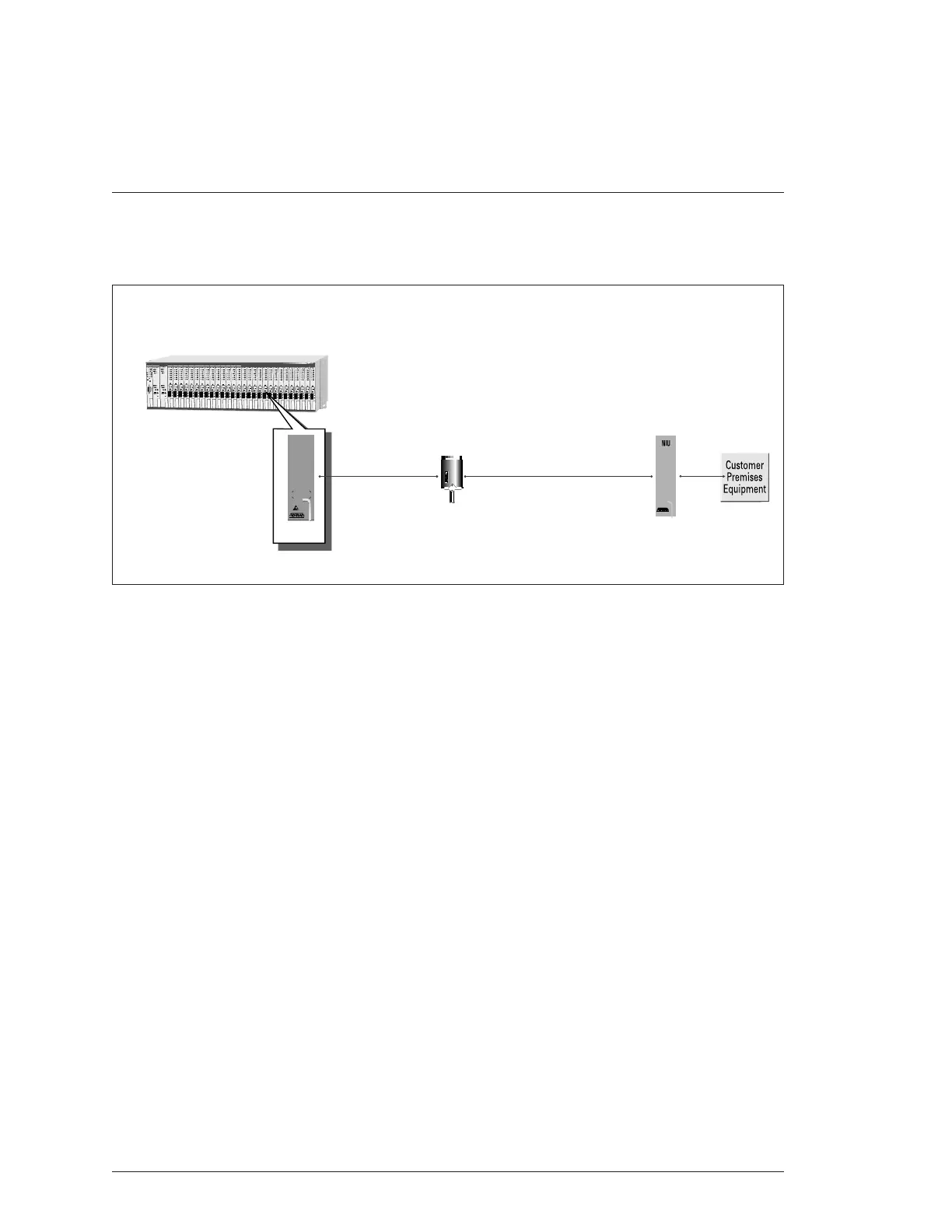

Figure 2 illustrates a typical T1 circuit with the use of a repeater.
Central Office
T1 Repeater
NIU
Remote Site
T1-OR
Total Access™ 3000/3010 Chassis
6 Kft3 Kft
Figure 2. T1 Circuit With a Repeater
