The STS-1 incorporates these features:
• Screen provisioning and troubleshooting via menus through the SCU
• TL1 and SNMP support via SLV
• Performance history
• Provides a full SONET STS-1 terminal multiplexer in a single plug-in
module
• Full grooming of VT1.5s within the STS-1
• Software-controlled STS-1 LBO and automatic received equalization
• Supports local, loop and external DS1 timing modes
• Provides 1:1 equipment protection switching
Faceplate LED indicators include:
• Power
• Status
• Test
• Clock
• Lockout
• On Line
STS-1 MX
1181030L2
POWER
STATUS
TEST
CLOCK
LOCKOUT
ON LINE
APS
TEST/
ENABLE

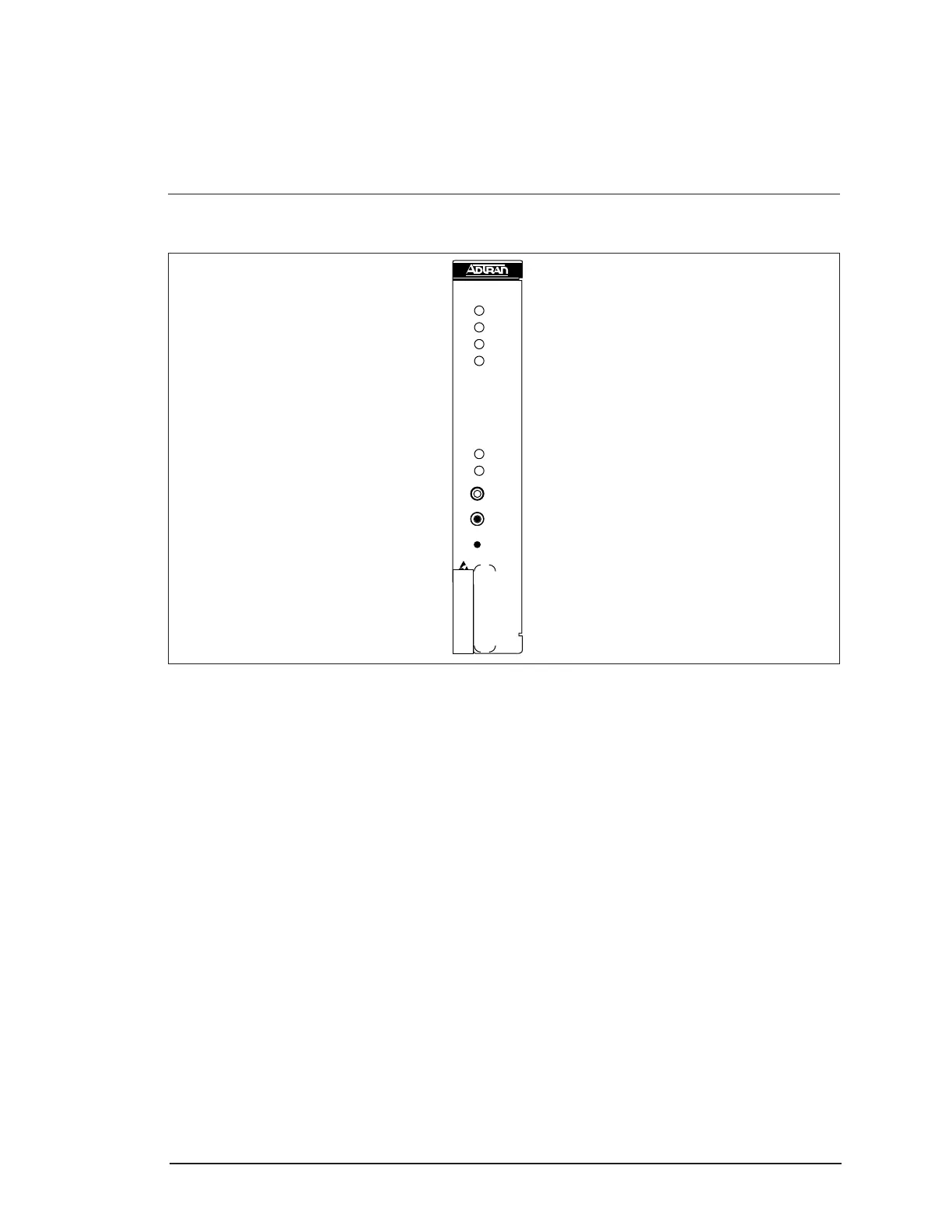

Figure 8. STS-1 MUX Faceplate
