ADTRAN Total Access 3000 - Page 34

6TASYS101-1E
TOTAL ACCESS 3000/3010
SYS-101
Page 28 of 46
Total Access
®
3000/3010 System Manual© 2003, ADTRAN, Inc.
4.3.5 H2TU-C
The Total Access 3000/3010 H2TU-C is a high-density Central Office transceiver unit
that works with a remote unit (H2TU-R) and an optional H2R to establish T1 (1.544
Mbps) data rates over a single pair copper loop. The unit is designed to operate in the
Total Access 3000/3010 chassis, which accommodates 28/22 HDSL2 circuits in a 6-
inch tall space. See Figure 14.

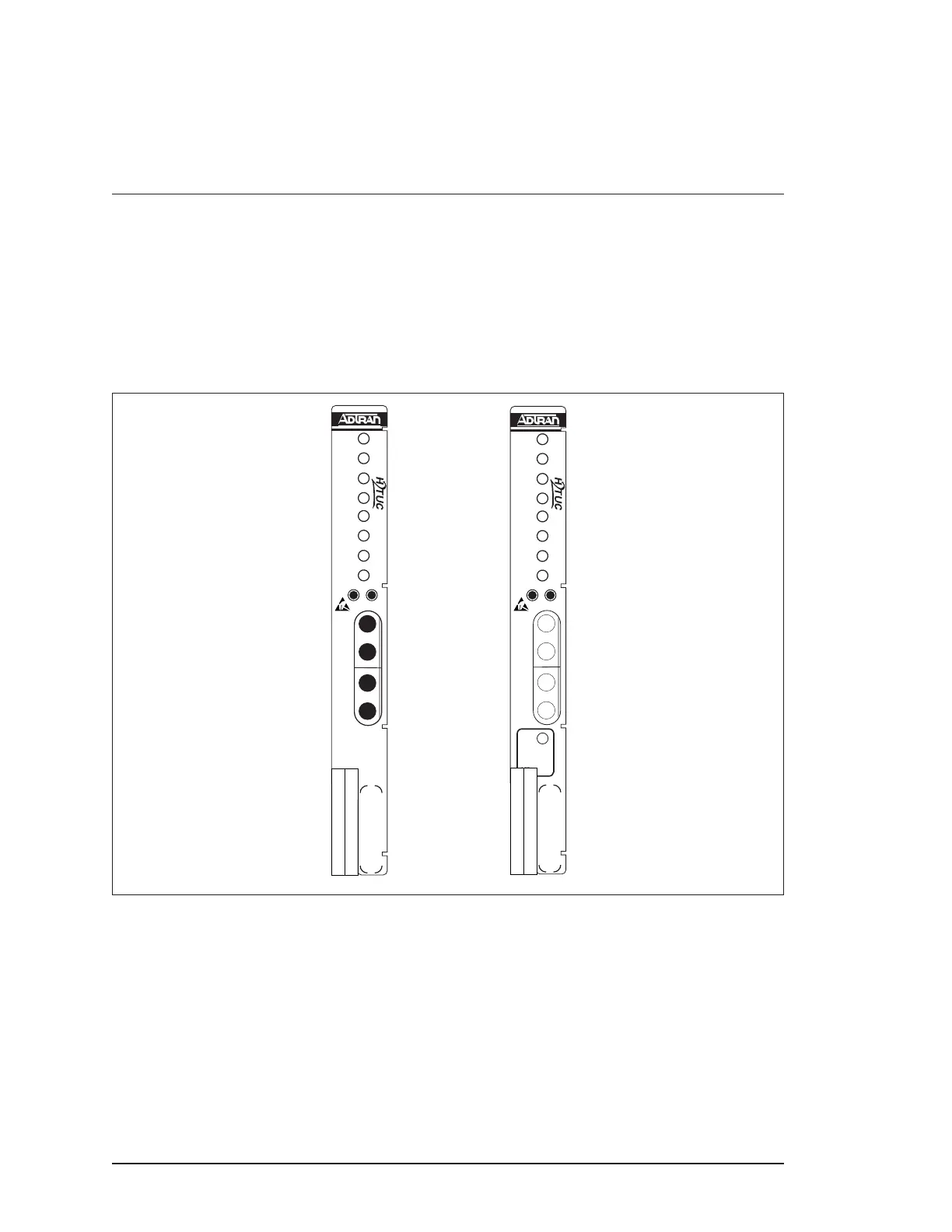

Figure 14. H2TU-C Faceplates
The H2TU-C functions as the master in a master/slave relationship with the H2TU-R
and H2R. The user configures the Total Access 3000/3010 H2TU-C HDSL2 circuit
parameters in software. These parameters are then automatically communicated to the
H2TU-R. The Total Access 3000/3010 H2TU-C provides comprehensive user-friendly
Operation, Administration, Maintenance and Provisioning (OAM&P) circuit
information for the entire HDSL2 circuit.
RLOS
DLOS
STAT
CODE
1181112L4
LBK
HLOS
HCRC
DSL
ARM
(YEL)
LBK
(GRN)
B8ZS
TX
DSX
EQ
RX
TX
DSX
MON
RX
LINE
RLOS
DLOS
STAT
CODE
1181112L5
LBK
HLOS
HCRC
DSL
ARM
(YEL)
LBK
(GRN)
B8ZS
TX
DSX
EQ
RX
TX
DSX
MON
RX
LINE
H
L
S
S
PROT
GRN = ACTV
YEL = STBY
RED = UNAV
OFF = DIS
