Advantech-DLoG DLT-V8312 - Integrated Low Profile Wi-Fi Antenna (Optional); Fig. 10.2: Integrated Low Profile Wi-Fi Antenna (Optional)

To Next Page

To Previous Page

Optional equipment/accessories

Page 108 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

10.5. Integrated low profile Wi-Fi antenna (optional)

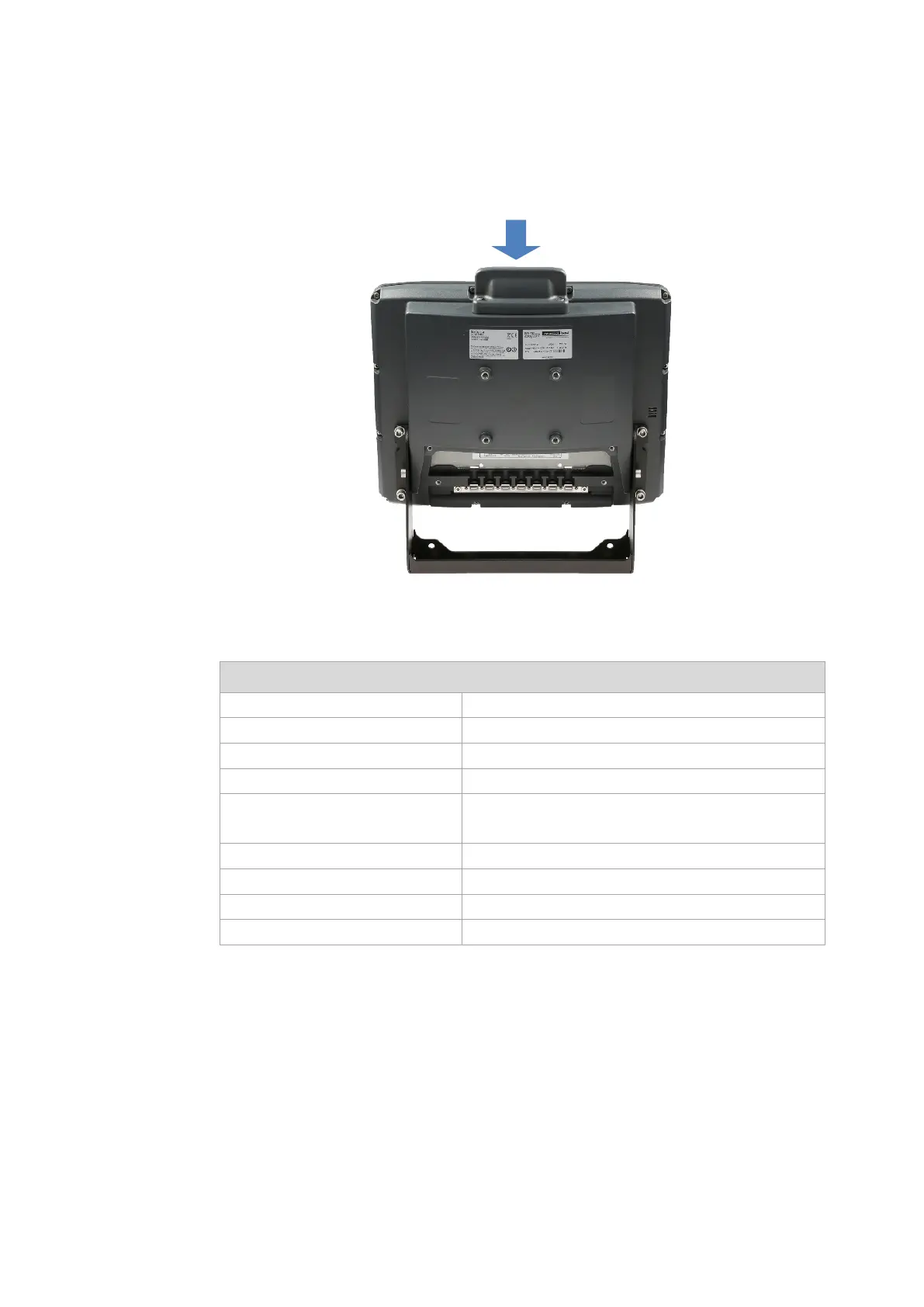

Fig. 10.2: Integrated low profile Wi-Fi antenna (optional)

Technical data

Application Wi-Fi IEEE 802.11 a/b/g/n Dual Band Diversity

Number of antennas 2

Type Omnidirectional antenna

Directionality Optimized for the DLT-V83 housing

Frequency range Band 1: 2400 to 2485 MHz

Band 2: 5150 to 5875 MHz

Antenna gain Max. 5 dBi (without loss through the cable)

Impedance 50 Ω

Polarization Vertical/Horizontal

Maximum transmitting power 100 mW / 20 dBm
