Configuration
Advantech-DLoG DLT-V83 Series Manual V1.31 Page 65 of 178
6.7.1. iManager
The "iManager" offers embedded firmware that can be used to manage and test the
onboard devices simply and independently from the operating system. This improves
system stability and compatibility.
The "iManager" offers a collection of standardized APIs for hardware monitoring, GPIO
selection/analysis, Multi-Level-Watchdog and more.
In the area GPIO Bank Control , outputs DO1 to DO3 can be set and inputs DI1 and
DI2 can be queried:

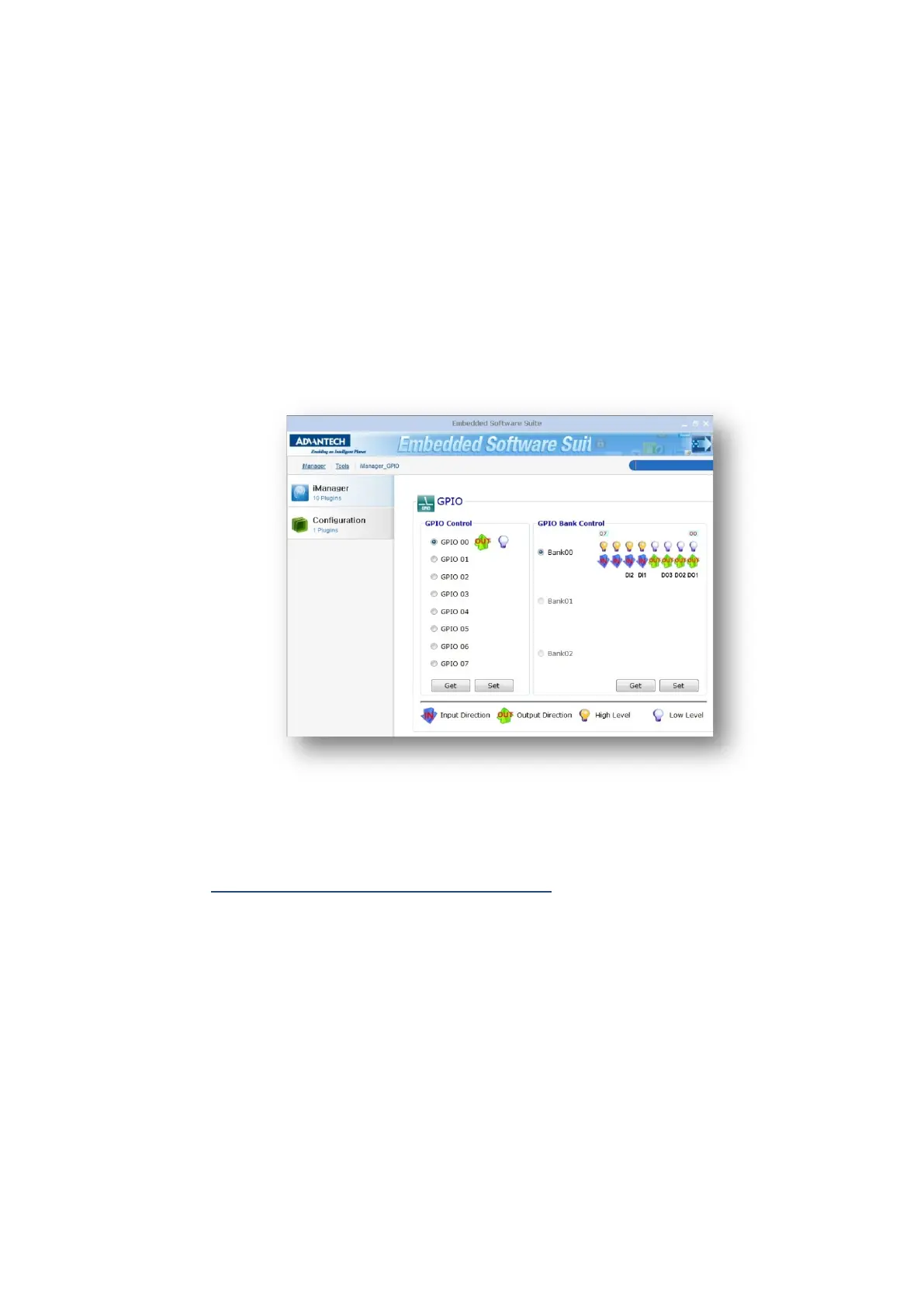

Fig. 6.27: iManager: GPIO Bank Control
Information about the "iManager" is available in the Internet at
http://www.advantech.de/embcore/imanager.aspx.
Hardware details such as the pin assignment of the CAN and Digital I/O interfaces are
described here in the manual in:
Chapter 11.4 CAN, digital I/O and second Ethernet interface (optional)
