Advantech-DLoG DLT-V8312 - Fig. 14.3: Dimensions DLT-V8310 with Standard Resistive Touchscreen, Side View

Technical data
Page 144 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG
DLT-V8310 Side view
Dimensions without add-ons (in mm)
Example:

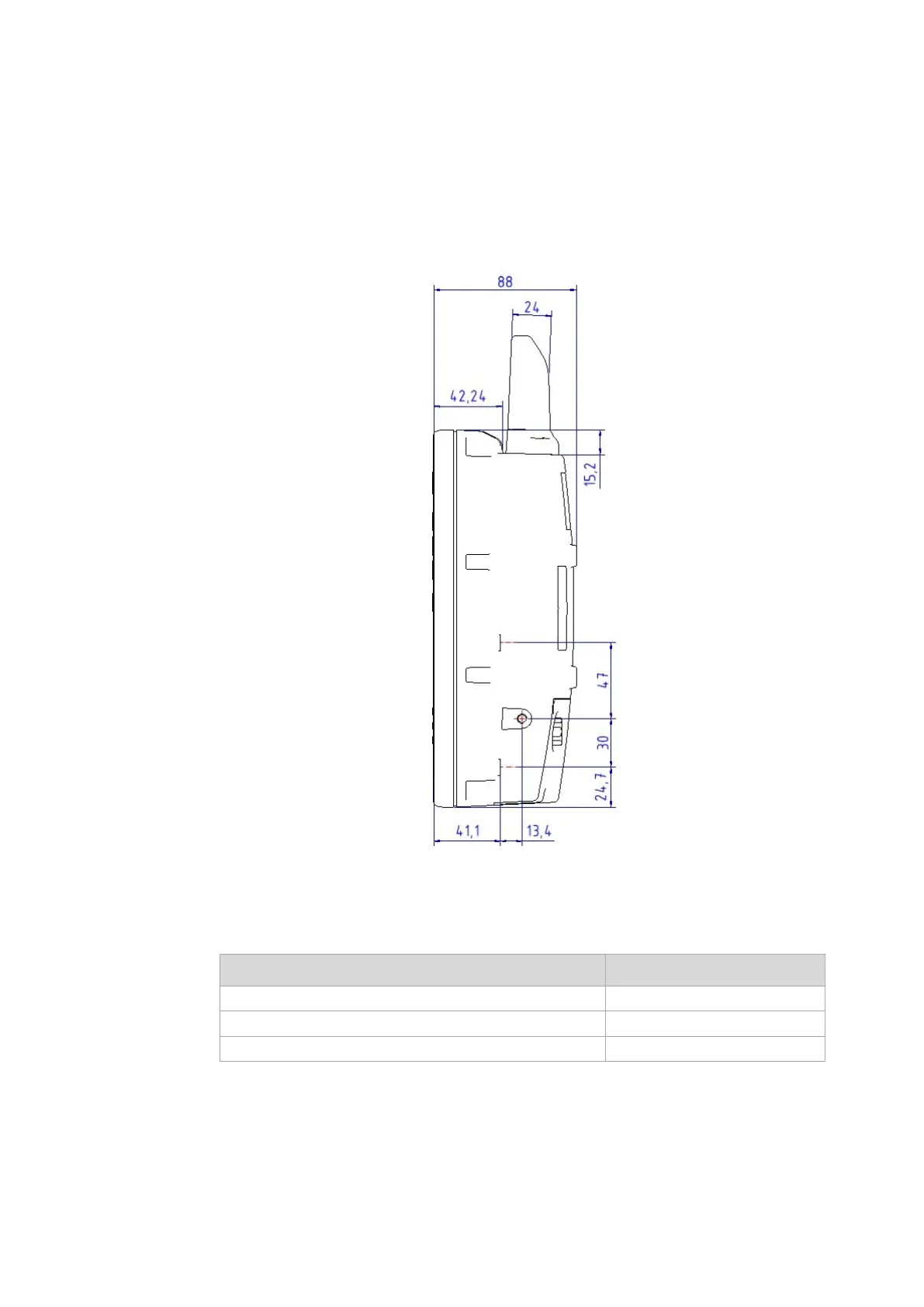

Fig. 14.3: Dimensions DLT-V8310 with standard resistive touchscreen, side view
The installation depth of the devices varies depending on the type of touchscreen:
Device type Building depth (side view)
DLT-V8310 standard resistive touchscreen 88 mm (see figure)
DLT-V8310 sunlight readable resistive touchscreen 89.4 mm
DLT-V8310 PCT touchscreen 89.5 mm
