Advantech-DLoG DLT-V8312 - Fig. 6.18: Function Test GSM; GPS, Test Connection; Fig. 6.19: Function Test GSM; GPS, Test Connection Status

To Next Page

To Previous Page

Configuration

Page 60 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

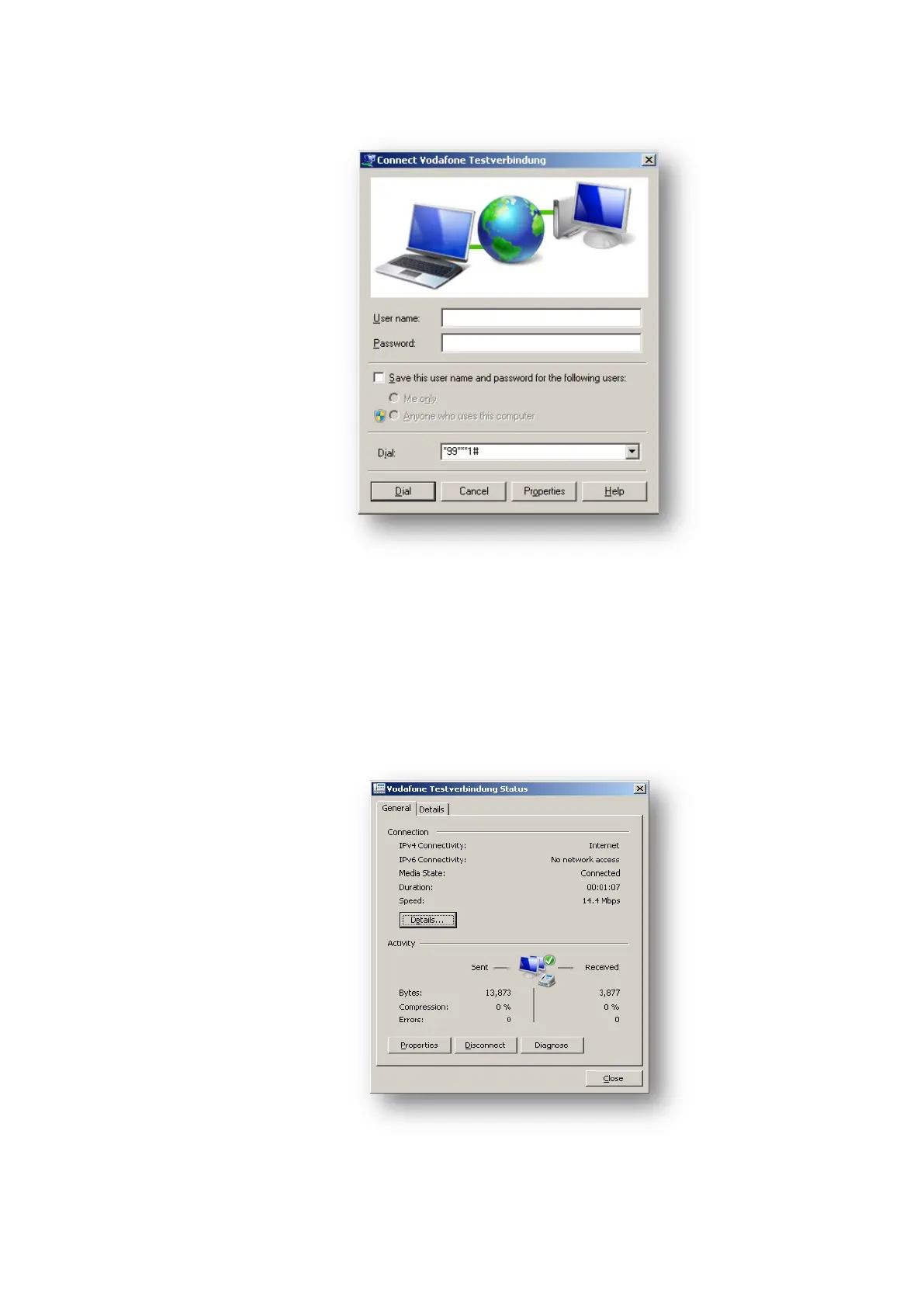

Fig. 6.18: Function test GSM / GPS, test connection

 Do not enter a user name or password.

 Click on Dial.

The test connection is established.

Fig. 6.19: Function test GSM / GPS, test connection status
