14.14. Internal speaker, sound

The DLT-V83 is equipped with an internal speaker as standard (2 W).

The system messages from the industrial PC are output via this speaker.

The internal speaker is configured in the audio settings for the operating system in

question.

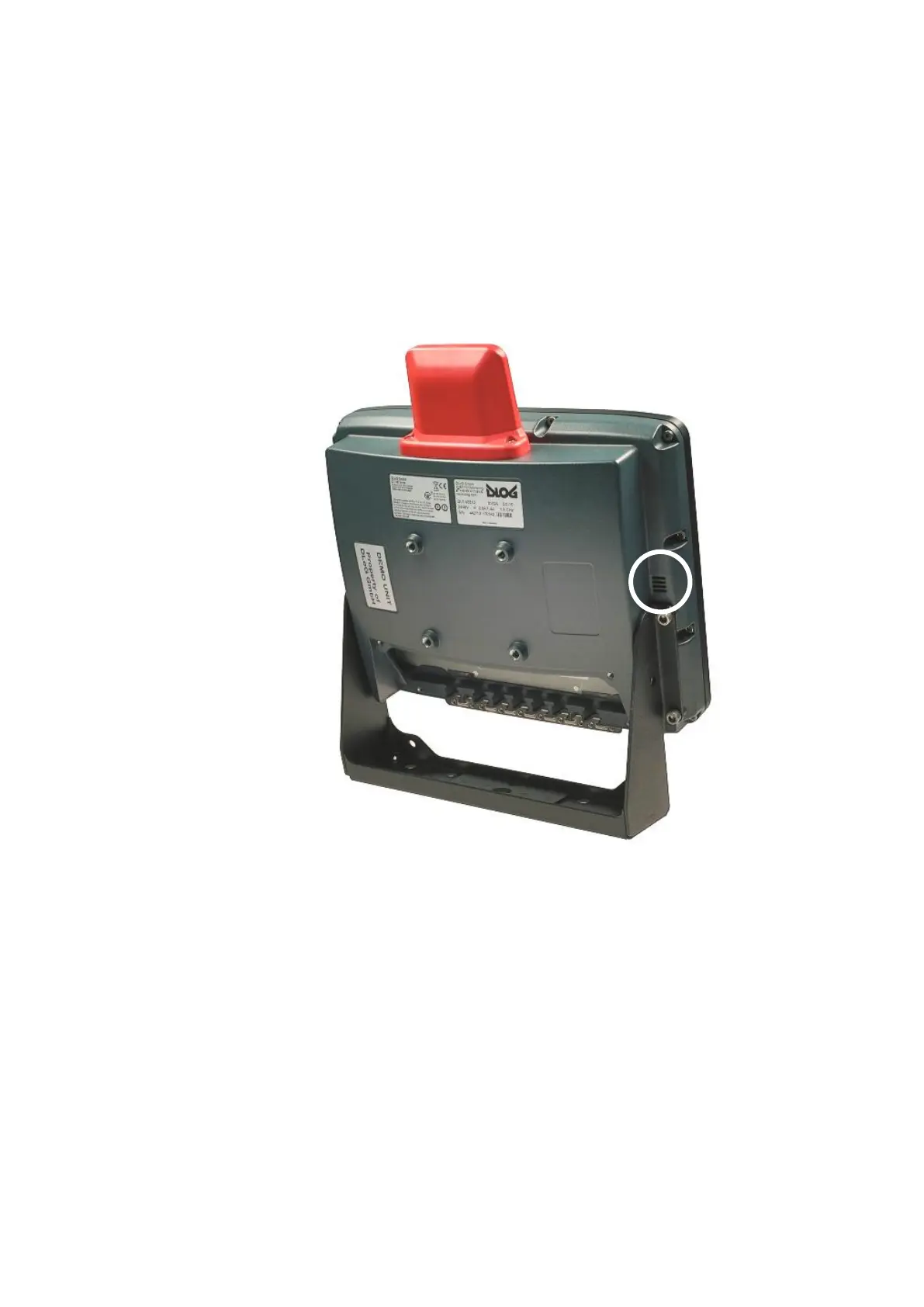

Fig. 14.1: Internal speaker

14.15. Integrated UPS (optional)

For details about the uninterruptible power supply, see section 10.2 Integrated UPS

(optional).
