Page 98 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

8.2.7. Angled AC power cable

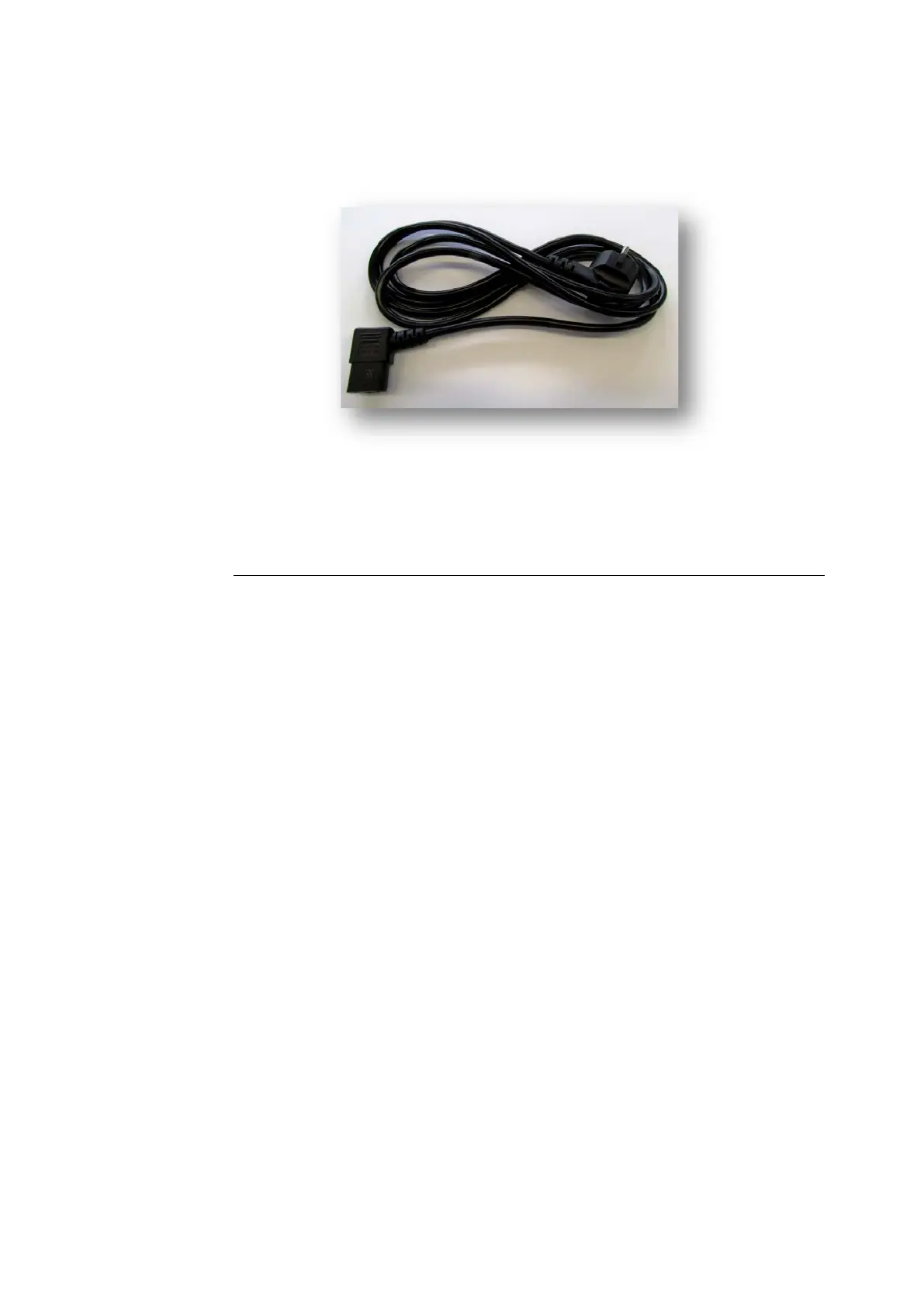

Fig. 8.7: Angled AC power cable, original Advantech-DLoG

NOTICE: Physical damage

Use only angled AC power cables from Advantech-DLoG. These meet the specific

requirements for low-temperature flexibility, UV resistance, oil resistance, etc.

If other power cables are used, the user/operator of the industrial PC is solely

responsible for any resulting damage.
