Configuration

Page 54 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

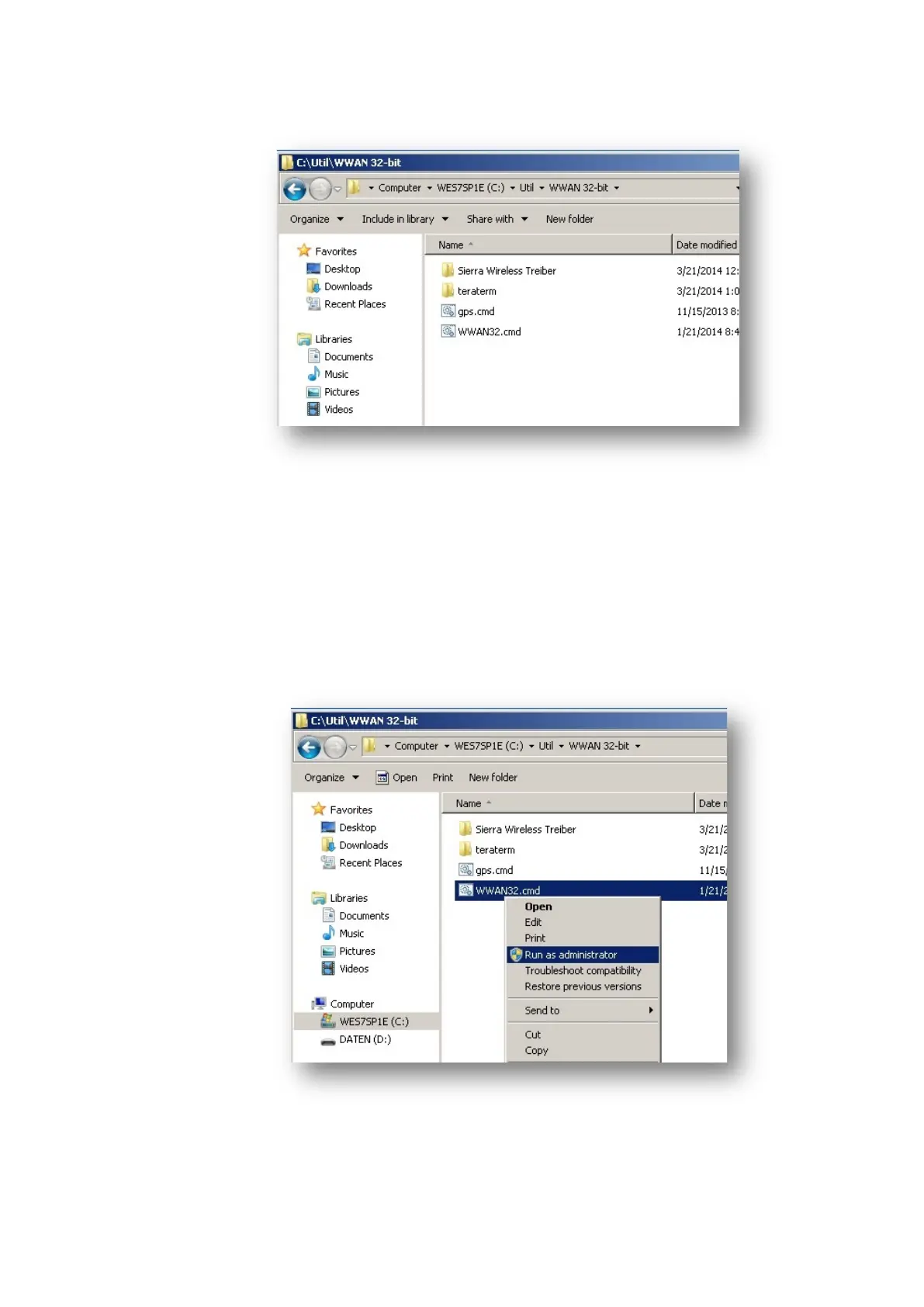

Fig. 6.8: WWAN driver installation, WWAN 32-bit

 Open "WWAN 32-bit".

 Right-click on "WWAN32.cmd" and Run as administrator.

Fig. 6.9: WWAN driver installation, Run as administrator
