Advantech-DLoG DLT-V8312 - Windows Zero Configuration (WZC); Fig. 6.5: LCM Manage Profiles Dialog Box with the Admin Login Tab; Fig. 6.6: Entering the LCM Password: SUMMIT

To Next Page

To Previous Page

Configuration

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 51 of 178

 Click the Admin Login tab.

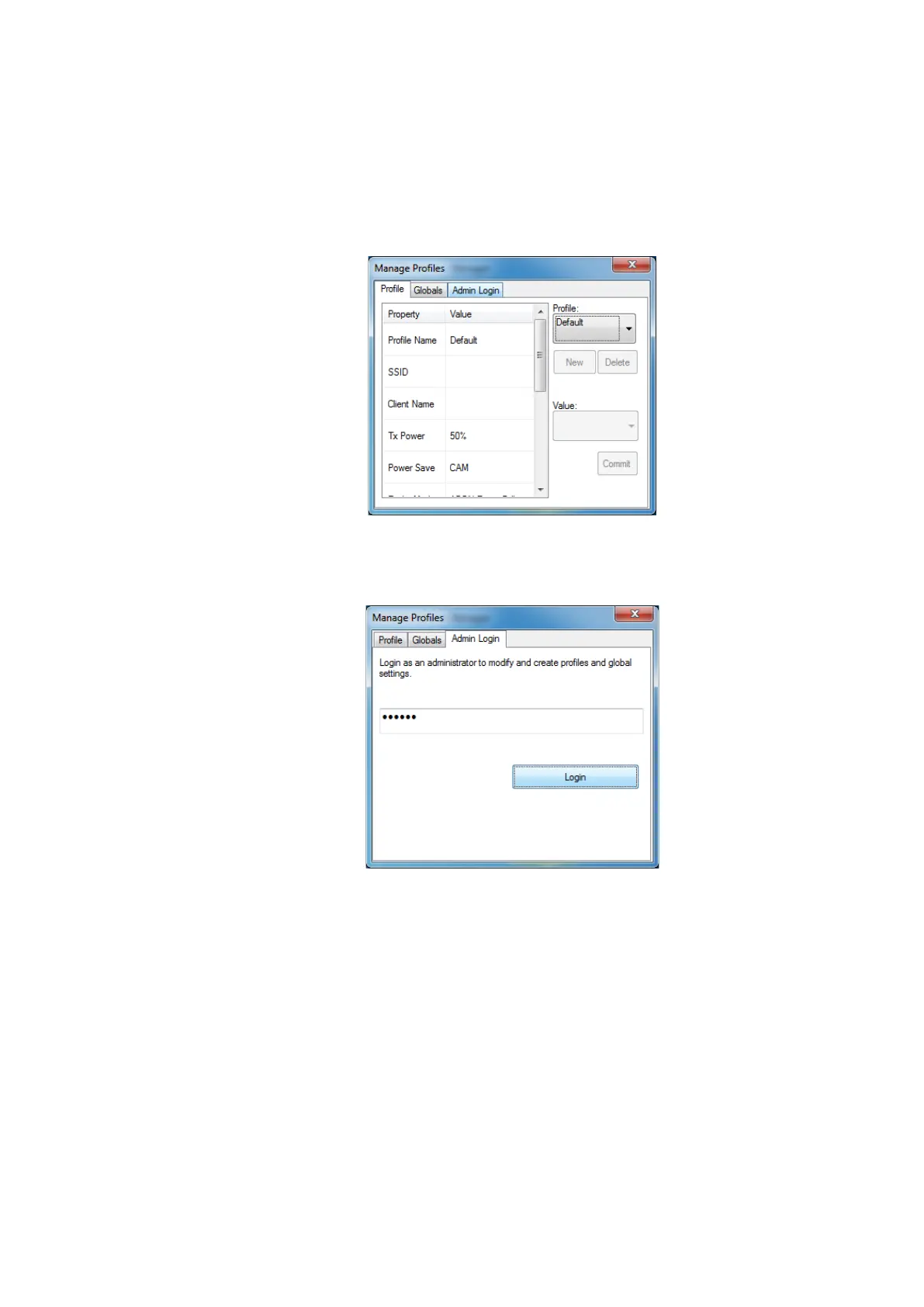

Fig. 6.5: LCM Manage Profiles dialog box with the Admin Login tab

Fig. 6.6: Entering the LCM password: SUMMIT

The default password is SUMMIT (must be entered in upper-case characters).

6.4.6. Windows Zero Configuration (WZC)

You will find information on WZC in the Microsoft Windows online help system.
