Advantech-DLoG DLT-V8312 - Fig. 7.9: Unused Cable Outlets Sealed off; Fig. 7.10: Power Supply Cable with Cable Clip on the Strain Relief Rail; Fig. 7.11: Detailed View Cable Clips on Strain Relief Rail

Mounting (mechanical and electrical)
Advantech-DLoG DLT-V83 Series Manual V1.31 Page 83 of 178
 Close off the unused cable
outlets with dummy
grommets.

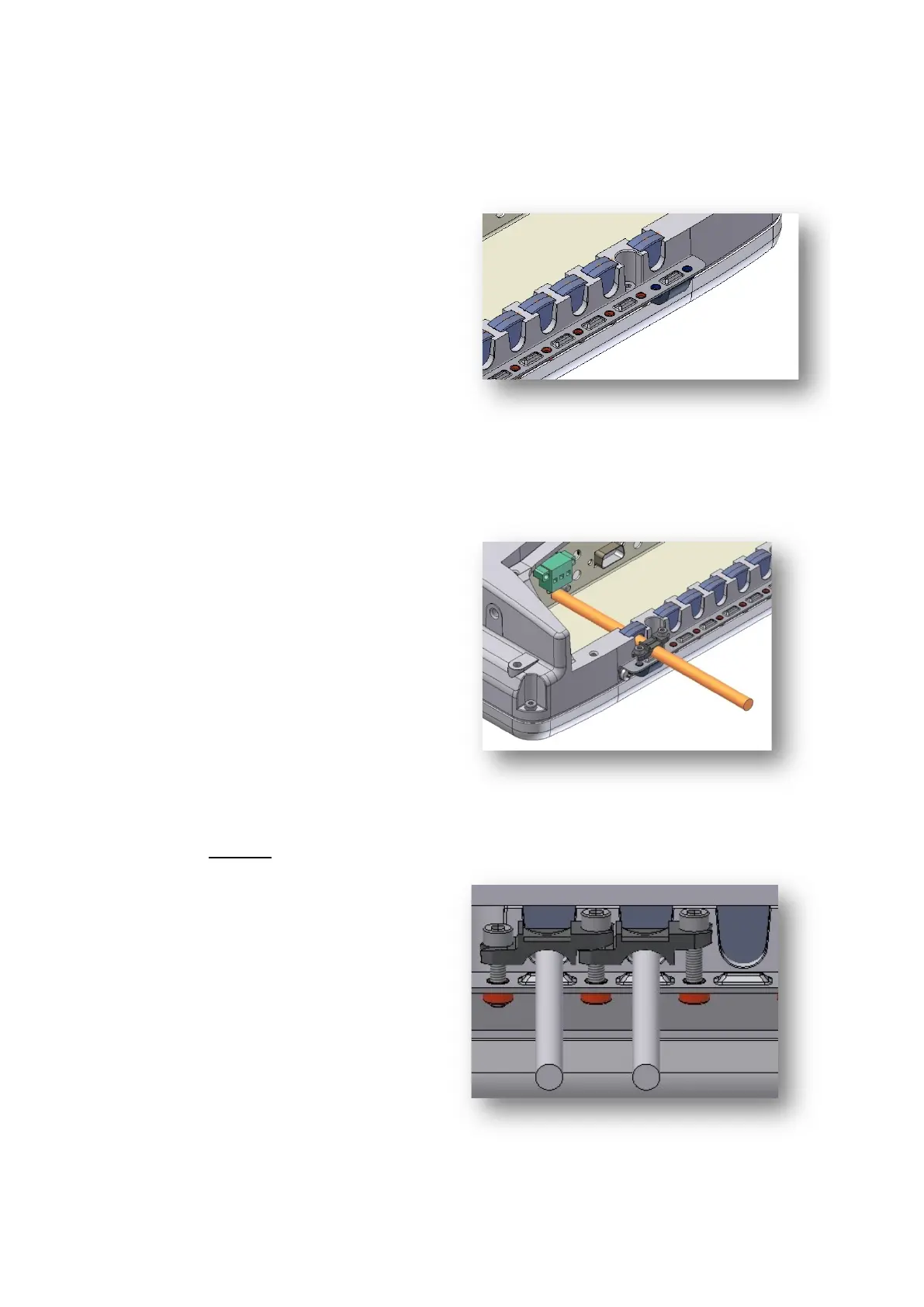

Fig. 7.9: Unused cable outlets sealed off
 Secure all cables with cable
clips and cylinder head
screws ISO 4762-M3x12-A2
to the strain relief rail .
Fig. 7.10: Power supply cable with cable clip on the
strain relief rail
NOTICE:
 Tighten the screws to
secure the cable but do not
squeeze or crimp the cable!
This may cause the cable to
break or damage the cable
insulation.
Fig. 7.11: Detailed view cable clips on strain relief rail
