Optional equipment/accessories

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 109 of 178

10.6. Integrated Wi-Fi antenna (optional)

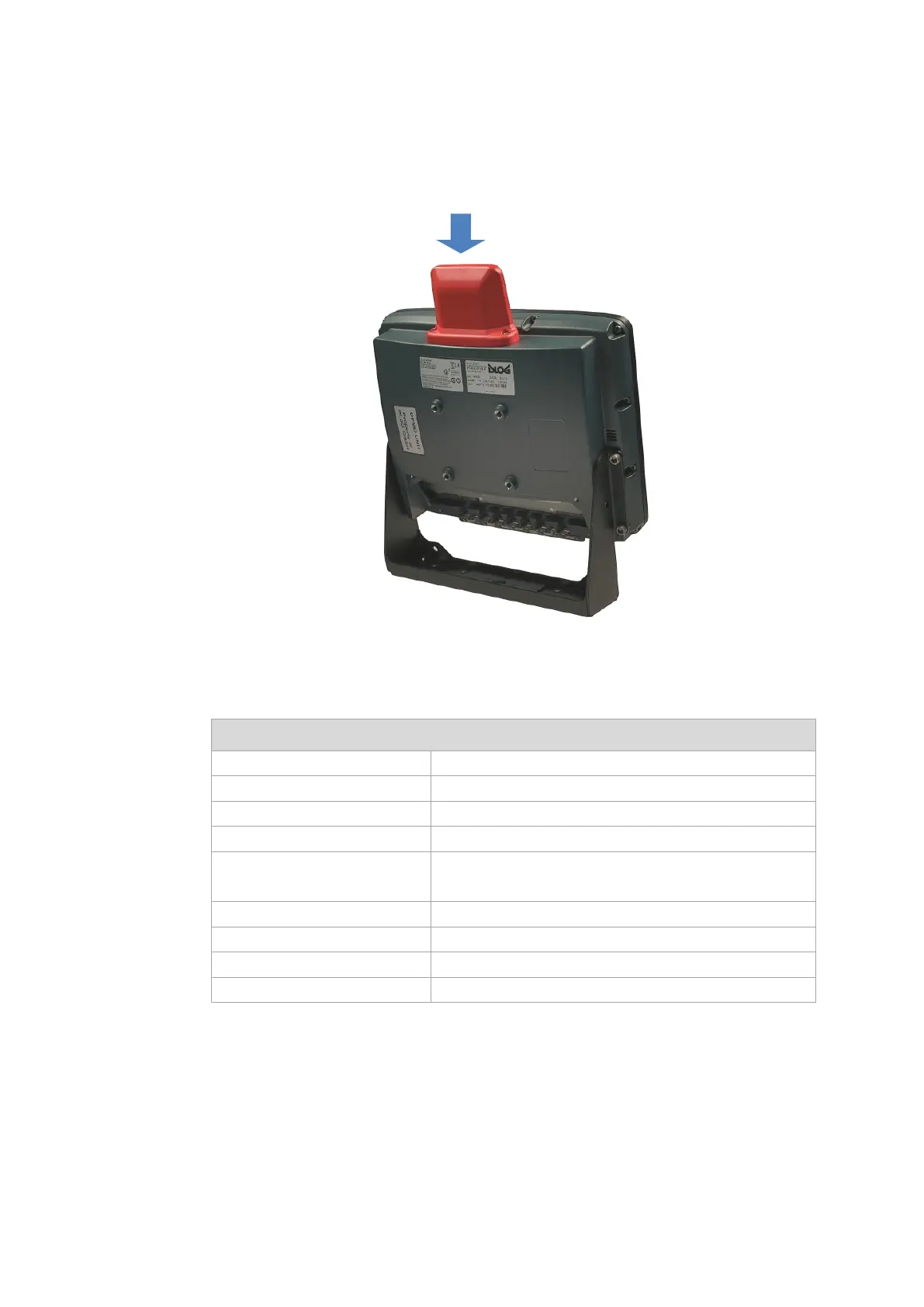

Fig. 10.3: Integrated Wi-Fi antenna (optional)

Technical data

Application Wi-Fi IEEE 802.11 a/b/g/n Dual Band Diversity

Number of antennas 2

Type Omnidirectional antenna

Directionality Optimized for the DLT-V83 housing

Frequency range Band 1: 2400 to 2485 MHz

Band 2: 5150 to 5875 MHz

Antenna gain Max. 3 dBi (without loss through the cable)

Impedance 50 Ω

Polarization Vertical/Horizontal

Maximum transmitting power 100 mW / 20 dBm
