Technical data

Advantech-DLoG DLT-V83 Series Manual V1.31 Page 153 of 178

14.17.2. DLT-V8312

Dimensions without add-ons (in mm):

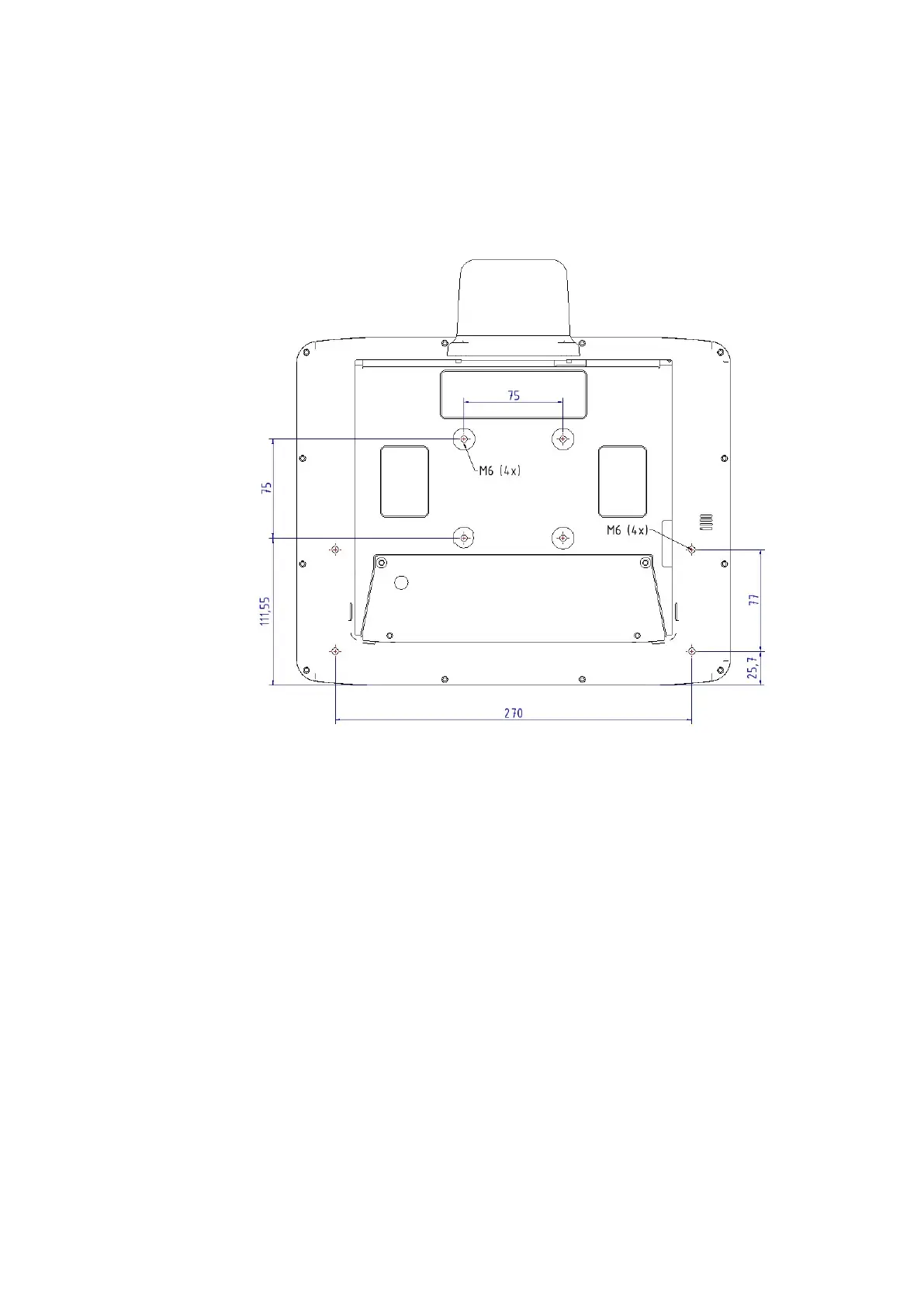

Fig. 14.12: Position of the VESA drill holes DLT-V8312

Depth of thread: M6 x 6mm.
