Page 92 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

8.1.3. DC connection cable (power supply cable)

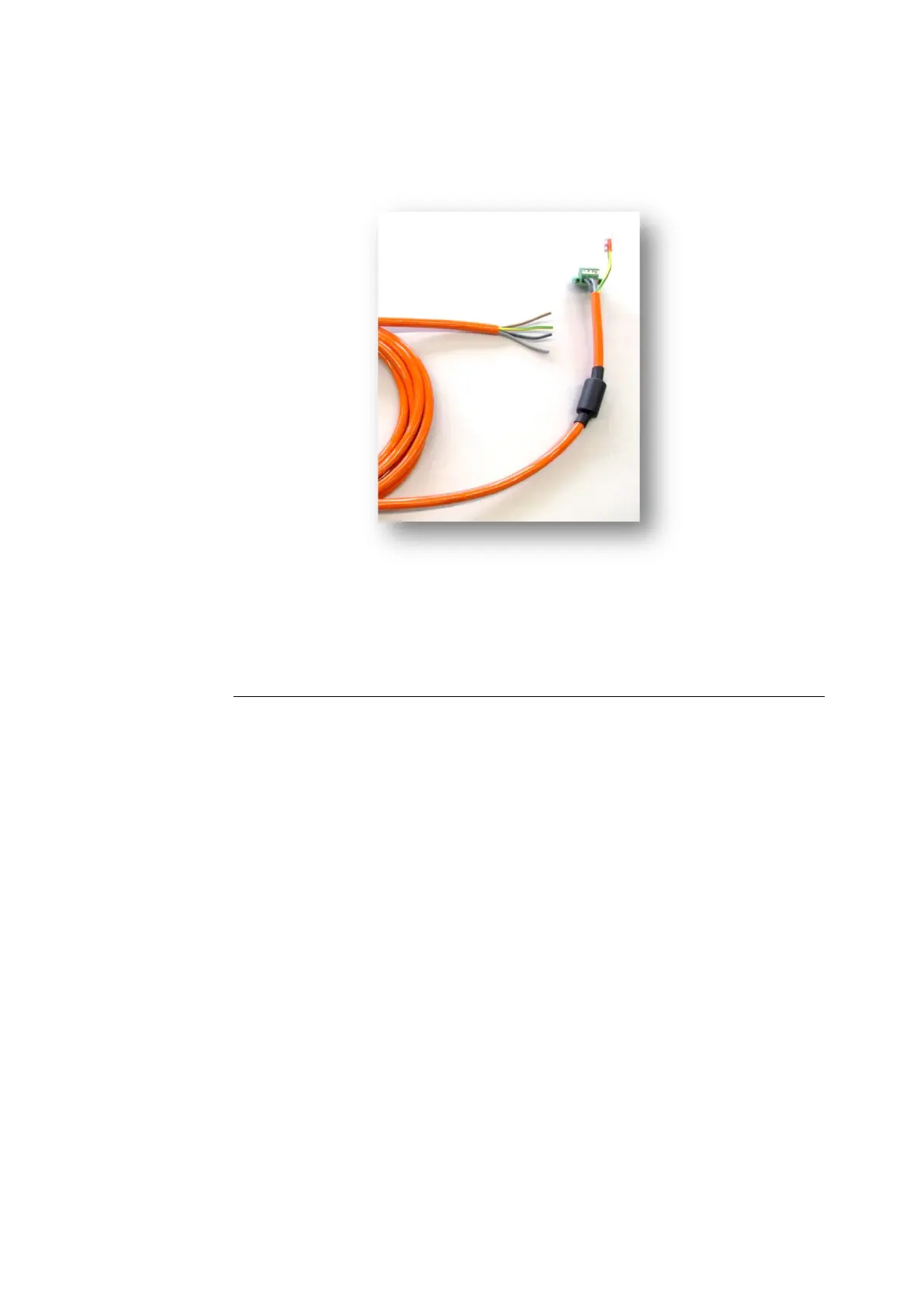

Fig. 8.3: DC connection cable, original Advantech-DLoG

NOTICE: Physical damage

Use only original power supply cables from Advantech-DLoG.

Advantech-DLoG power cables meet the specific requirements for low-temperature

flexibility, UV resistance, oil resistance, etc.

If other power supply cables are used: The user/operator of the industrial PC is

solely responsible for the resulting damage.
