Configuration

Page 58 of 178 DLT-V83 Series Manual V1.31 Advantech-DLoG

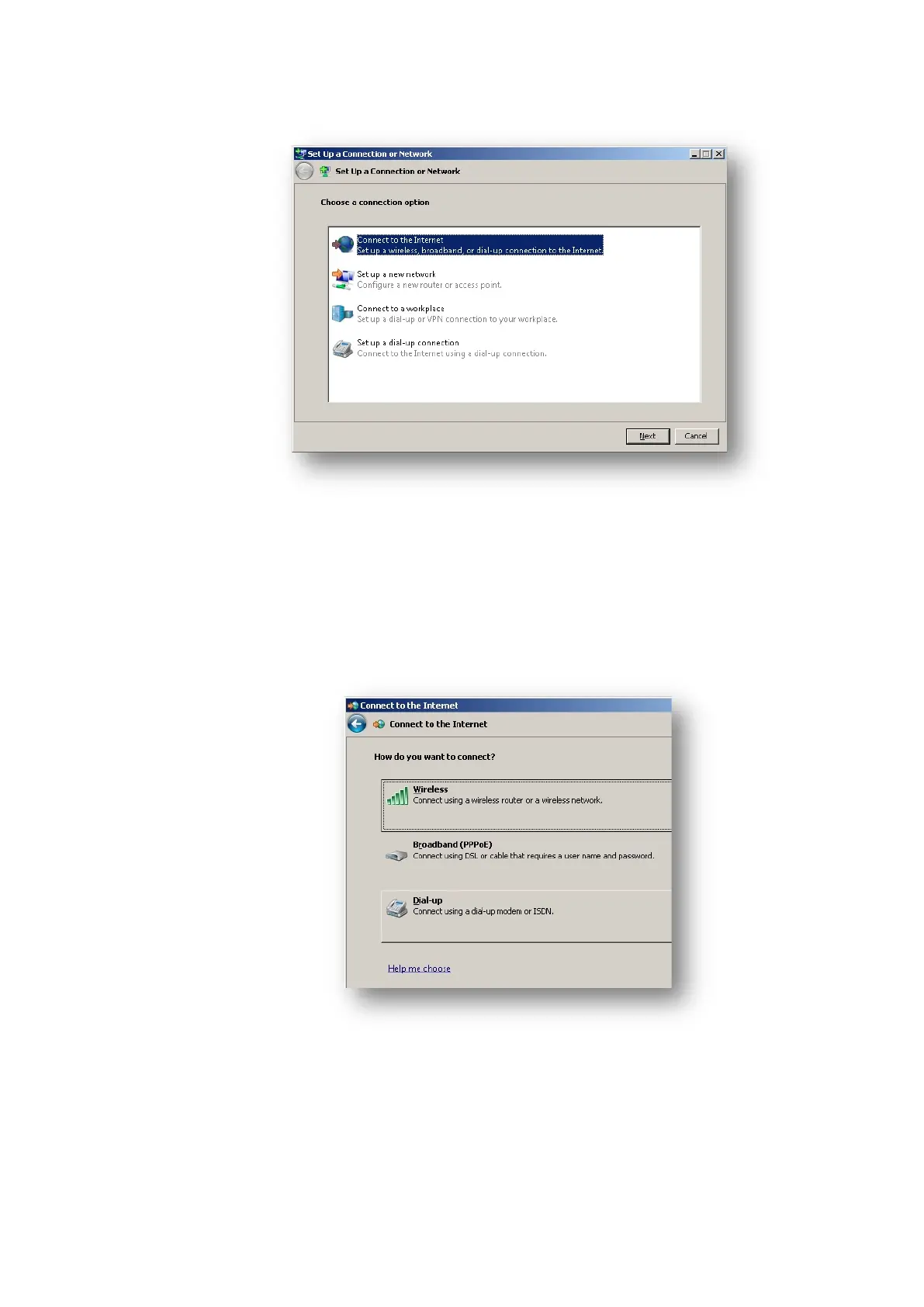

Fig. 6.14: Function test GSM / GPS, Connect to the Internet

 Select Connect to the Internet and confirm.

Fig. 6.15: Function test GSM / GPS, wireless

 Select Dial-up.
