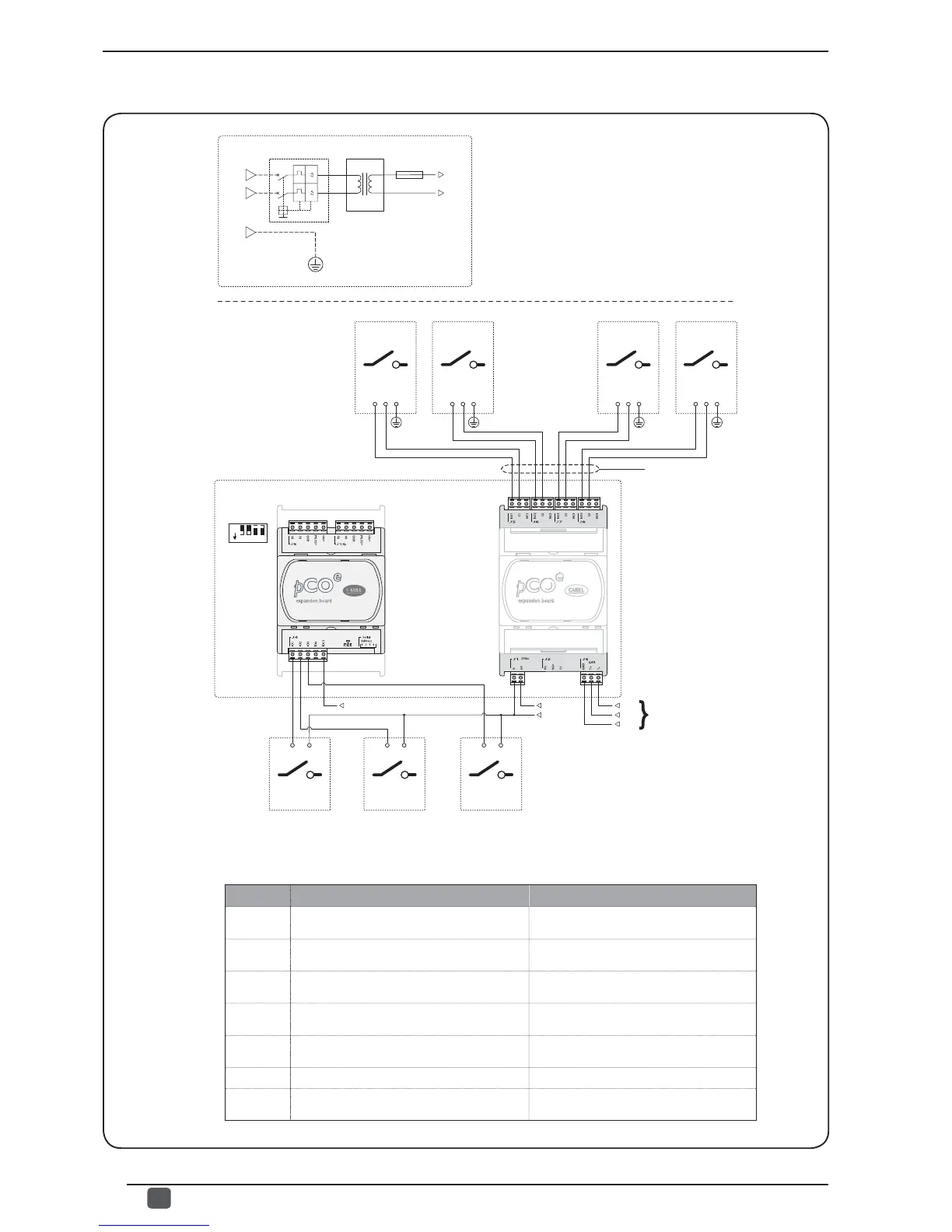

• VMF CRP 3 connections (remote control management):
VMF CRP (3)
1
ON
234
Serial Address:
L
N
PE
230V~50Hz
25VA
230
0
24
0
IL TR1
FUSE 1.25A
24V
AC
0V
AC
MAX 230V~2A MAX 230V~2A MAX 230V~2A MAX 230V~2A
1.5 mm
2
(AWG 16)
MAX 30m
AGS SGS SSI ASM
T-
T+
GND
0V
AC
24V
AC
0V
AC
RS 485
AGI RGS CCS
Code Function Description
ASG General System Alarm
Closed = Alarm in system
Open = No alarm in system
SGS
General System Status
Closed = System ON
Open = System OFF
SSI
System Season Situation
Closed = WINTER
Open = SUMMER
ASM
General system alarm
Closed = Alarm in progress
Open = No alarm in progress
AGI
General System Enabling
Closed = Switch system on
Open = Switch system off
RGS
General System Reset Closed = reset system
CCS
Season Changeover Control
Closed = Set WINTER
Open = Set SUMMER
