AERMEC MULTI CONTROL User Manual

21
4598010_00
GB

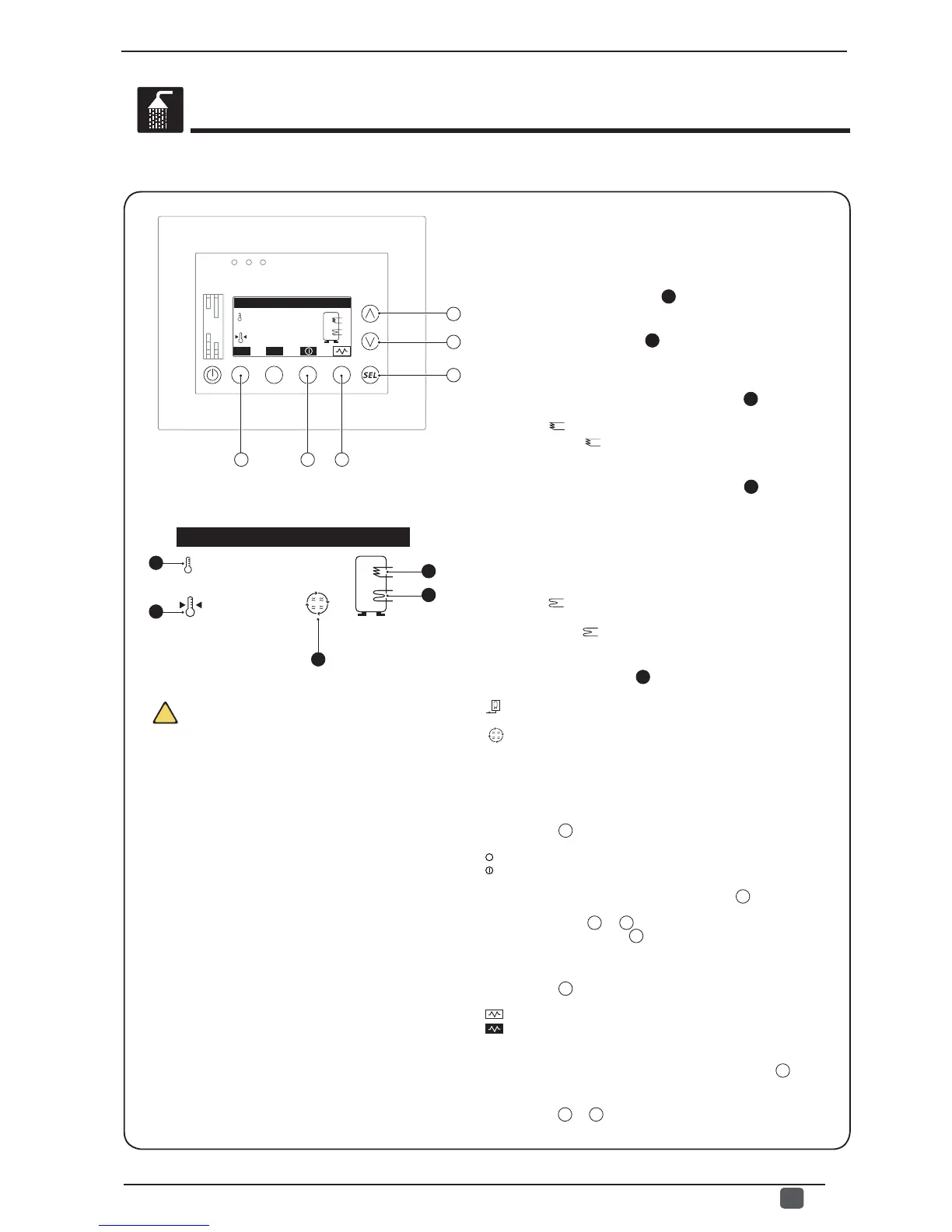

The fi rst window of the DHW SYNOPTIC menu allows the user
to monitor the status and settings for production of domestic
hot water in the system; this window displays the following
information:
- DHW storage temperature (
1
): indicates the current
temperature detected inside the DHW storage tank.
- Set temperature for DHW (
2
): Indicates the temperature
the system must bring the water inside the DHW storage tank
to.
- Status of water production from heat pump(
3
): indicates
the status of the heat pump, which can be:
- Fixed image ( ) (this means that the heat pump is not active).
- Flashing image ( ) (this means that the heat pump is
active).
- Status of integration for domestic hot water(
4
): indicates
the status of any integrations to DHW; the integration can be
performed by means of an electrical resistance or a boiler;
the supplementary heat sources are represented in the
system by the same symbol, which can be:
- NOT DISPLAYED (this means that no supplementary heat
source for the production of domestic hot water has been
installed).
- Fixed image ( ) (this means that the supplementary heat source is
not active).
- Flashing image ( ) (this means that the supplementary
heat source is active).
- DHW system indications (
5
): this area indicates particular
states during the production of domestic hot water:
- ( ) indicates the absence of communication between the
MULTI CONTROL accessory and the heat pump.
- (
) indicates that the anti-legionella cycle is currently in
progress.
From this window it is possible to:
(1) Activate or deactivate the production of domestic hot water:
to activate or deactivate the production of domestic hot water,
press the key
D
; pressing this key will change the symbol
highlighted above it according to one of the following states:
- ( ) function DISABLED;
- ( ) function ENABLED.
(2) Setting domestic hot water: pressing the key
C
will allow you
to enter the modifi cation mode and the value will be highlighted;
by pressing the keys
A
or
B
it will be possible to modify the set
value, while pressing the key
C
will confi rm this choice.
(3) Manually activate or deactivate the integrative heat source:
to manually activate or deactivate a supplementary heat source,
press the key
E
; pressing this key will change the symbol
highlighted above it according to one of the following states:
- ( ) supplementary heat source DEACTIVATED;
- ( ) supplementary heat source ACTIVATED.
(4) Pass on to the next window:
to go to the next window of this menu, press the key
B
.
(5) Exit this window:
press the keys
A
or
F
to return to the selection of the menus.
• Checking status of chillers for the production of domestic hot water:
DOMESTIC HOT WATER SYNOPTIC menu procedures
!
ATTENTION: this menu is displayed
only if the system has heat pumps
suitable for the production of domestic
hot water.
To manage the production of domestic
hot water in a suitable fashion, at
least two VMF-CRP modules must
be inserted in the system (one for
management of the 3-way diverter
valves and the other for management
of the supplementary electric
resistance).
5
ED
SANITARY WATER
ESC
25.3
o
C
40.0
o
C
F
A
B
C
SANITARY WATER
25.3
o
C
40.0
o
C
1
2
3
4
