AERMEC MULTI CONTROL User Manual

34
GB
4598010_00

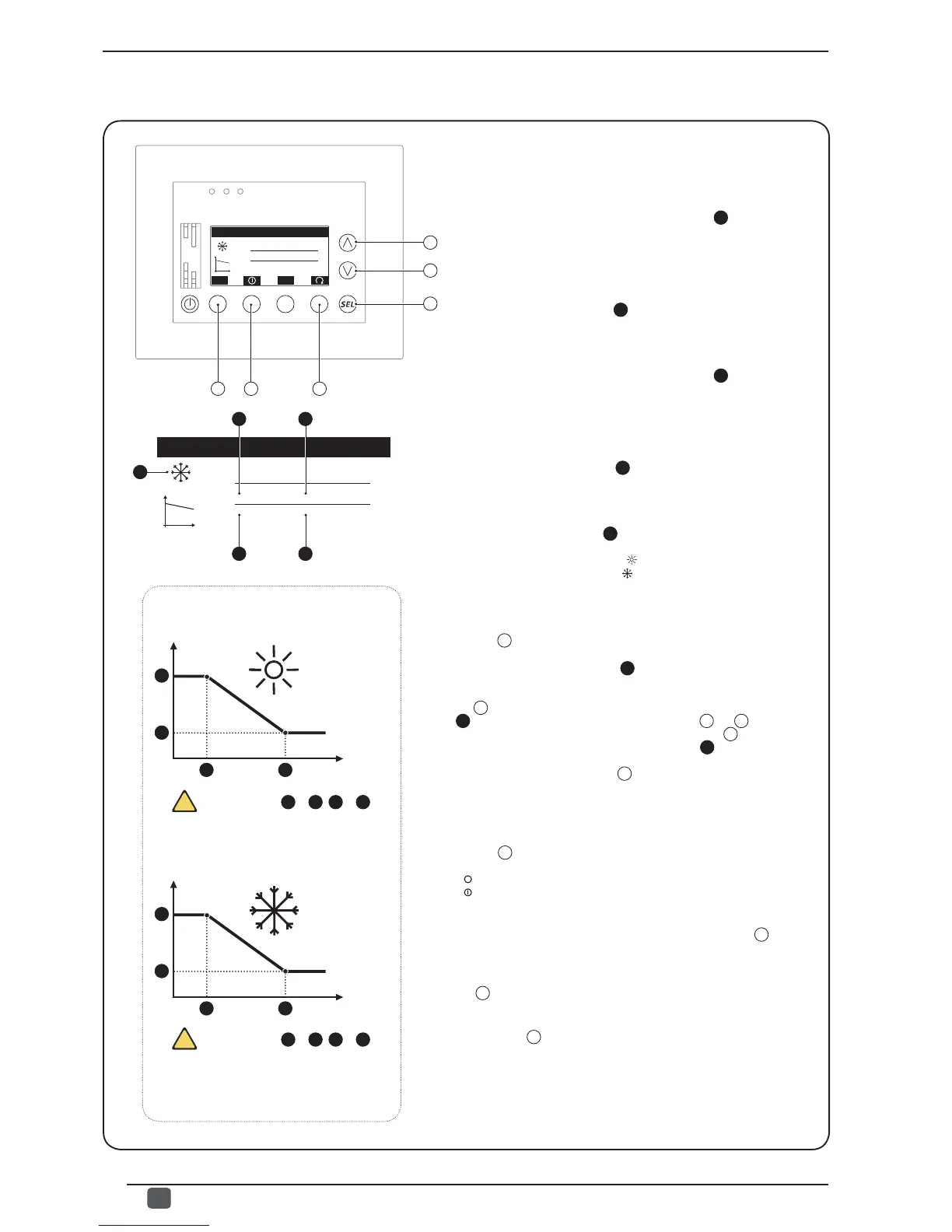

The third window of the UNIT SETUP allows the installer to set
the compensation function on the work setting based on the
external air temperature; this window displays the following
information:
- External air temperature value (1) (
1
): indicates
the minimum external air temperature value which the
compensation function refers to; depending on the functioning
mode (heating or cooling) this value will be connected to the
maximum or minimum produced water setting, as indicated
in the curves below.
- Work setting value (1) (
2
): indicates the maximum or
minimum work setting value (depending on the heating
or cooling functioning mode) connected to the MINIMUM
external air value.
- External air temperature value (2) (
3
): indicates
the maximum external air temperature value which the
compensation function refers to; depending on the functioning
mode (heating or cooling) this value will be connected to the
minimum or maximum produced water setting, as indicated
in the curves below.
- Work setting value (2) (
4
): indicates the minimum or
maximum work setting value (depending on the heating
or cooling functioning mode) connected to the MAXIMUM
external air value.
- Compensation label (
5
): indicates whether the data
displayed refers to cooling or heating compensation:
- compensation at COOLING ( );
- compensation at HEATING ( ).
From this window it is possible to:
(1) Select compensation at heating or at cooling: by pressing
the key
D
the data displayed will pass from that referred to
heating compensation to that referred to cooling
; this data is
identifi ed by the relative labels (
5
).
(2) Set the values for the compensation function: pressing the
key
C
will allow you to enter the modifi cation mode and the value
(
1
) will be displayed; by pressing the keys
A
or
B
it will be
possible to modify the value, while pressing the key
C
will confi rm
the choice, automatically selecting the value (
2
) , which can be
modifi ed the same way as the previous value; whenever a value is
confi rmed by pressing the key
C
, the next value will be selected
until all four values have been entered.
(3) Activate or deactivate the compensation function: to activate
or deactivate compensation (both heating and cooling, as it is
not possible to activate or deactivate them individually), press
the key
E
; when this key is pressed, the symbol highlighted
above it will change, according to one of the following states:
- ( ) compensation DISABLED;
- ( ) compensation ENABLED.
(3) Pass on to the next window:
to go to the next window of this menu, press the key
B
.
(4) Go back to the previous window:
to go back to the previous window of this menu, press the
key
A
.
(5) Exit this window:
press the key
F
to return to the selection of the USER menus.
• Setting the compensation function of the working mode (Password 303):
ATTENTION:
1
<
3
,
2
<
4
TAE
TUA
1
3
2 4
Compensation logic at COOLING:
TAE
TUA
1
3
4 2
Compensation logic at HEATING:
TAE = External air temperature.
TUA = Produced water temperature.
!
ATTENTION:
1
<
3
,
2
>
4
!
A
B
C
ESC
F DE
Climatic setpoint
-05.0
o
C
+15.0
o
C
+40.0
o
C
+35.0
o
C
TAext TWout
Climatic setpoint
-05.0
o
C
+15.0
o
C
+40.0
o
C
+35.0
o
C
TAext TWout
1 2
3 4
5
